7' E38 740iL Various plugs according to application

Various plugs according to application

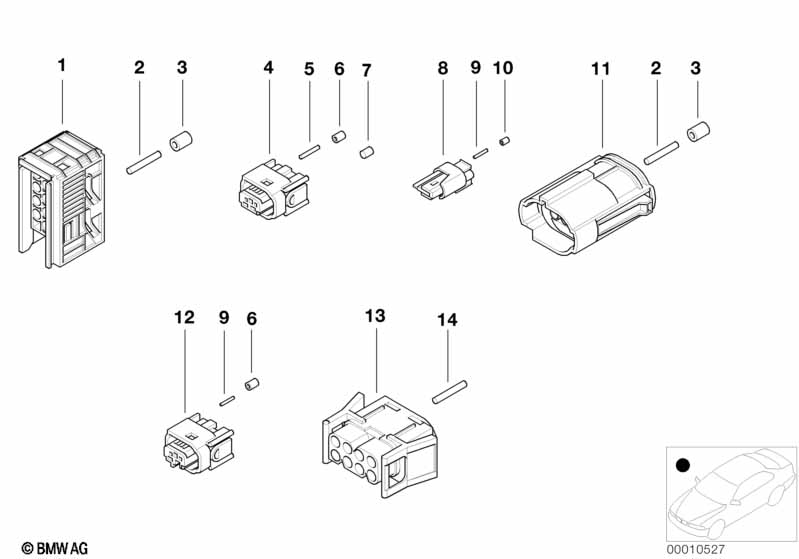

No. Description Supp. Qty  From   Up To  Part Number Price Notes
Only applies to headlight
01 Universal socket housing uncoded 8 POL. 2 61138352576 $8.00
02 Terminal socket 2.5 0.5-1.0 MM² X 61131392302 $0.42
03 Single conductor seal GRAU/0.5-1.0MM² X 61131383789 $0.20
03 Single conductor seal GELB 1.5-2.5MM² X 61131383791 $0.20
05 Terminal socket MQS ELA 0.75 MM²/SN X 07/2001 61138366260 $0.23
05 Terminal socket MQS ELA 0,5-0,75 MM² AG X 61136931880
06 Single conductor seal 0.5-1.0MM² GN X 61138366245 $0.17
07 Dummy grommet MQS Ø=3,6 X 61138366249 $0.20
09 Terminal socket MQS ELA 0.2-0.5 MM² SN X 61131393704 $0.23
10 Single conductor seal 0,13-0,35 MM² X 61138366247 $0.18
14 Snap-in receptacle 2.5 0,5-1,0MM² X 61131376202 $0.98
