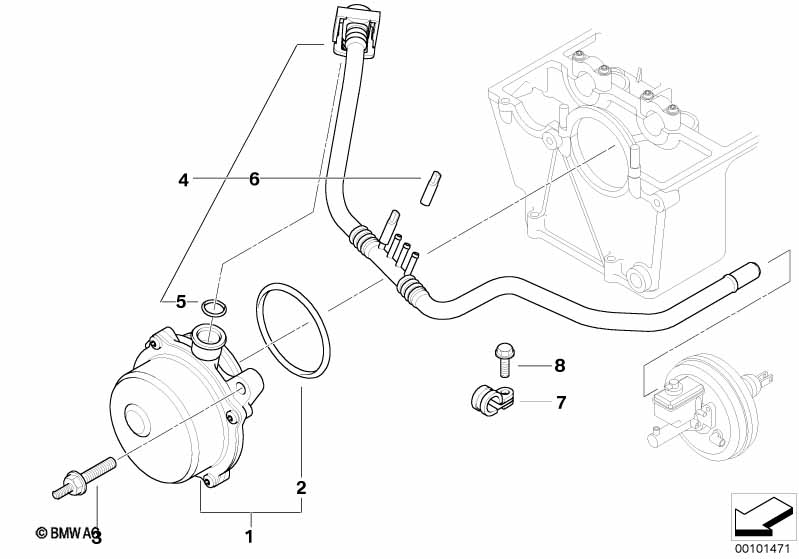

7' E65 740d Vacuum pump with tubes

Vacuum pump with tubes
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Vacuum pump 1 11662248632 +core
02 O-ring 61X3,5 1 11667794767 $6.02
03 Screw M8X35/M6X15 2 11667789871
04 Vacuum pipe 1 11667789625 +core
05 O-ring 12X2,5 1 12311702235 $0.84
06 Cap 1 11667803829
07 Clamp D=13/6,4 1 12427840405 $1.52
08 Hex bolt with washer M6X16-U1-ZNS3 1 08/2012 07119903844 $0.38
08 Hex bolt with washer M6X16-U1-8.8 1 07119904524 $0.25
Notes
  • +core = plus core charge (possibility of a return of the old part)
