7' E65 740d GA6HP32Z housing with mounting parts

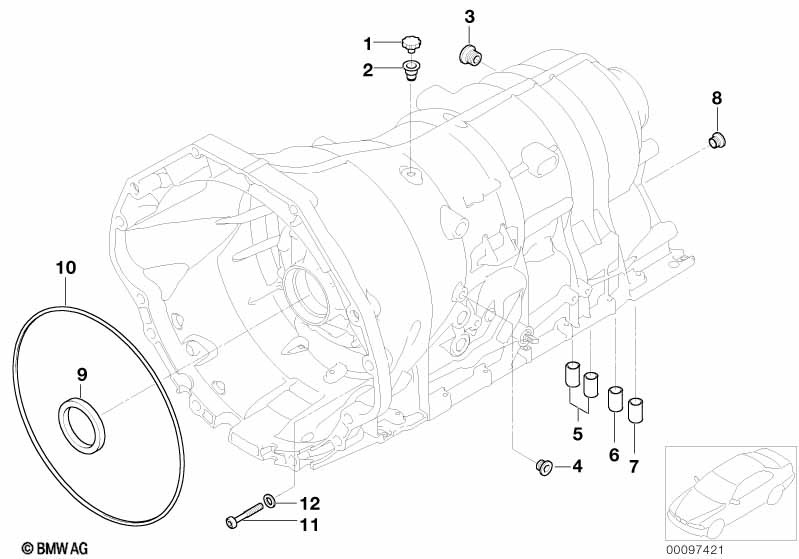

GA6HP32Z housing with mounting parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Vent cover 1 24101422142 $1.95
02 Vent pipe 1 24101422141 $5.93
03 Screw Plug With Gasket Ring M18X1,5 1 24117552349 $7.65
04 Screw Plug With Gasket Ring M10X1 1 24117552351 $4.60
05 Sealing sleeve L=25,9MM 2 24107519314 $5.33
06 Sealing sleeve 1 24107571250 $4.92
07 Sealing sleeve L=40,7MM 1 24107520715 $6.05
08 Screw Plug With Gasket Ring M12X1,5 1 24117552350 $6.35
09 Shaft seal 45X58X7 1 24317519352 $13.53
10 O-ring 249X3 1 24311421583 $11.90
11 Torx bolt M6X50 13 24311219386 $1.89
12 Gasket ring 13 24311219165 $1.31
