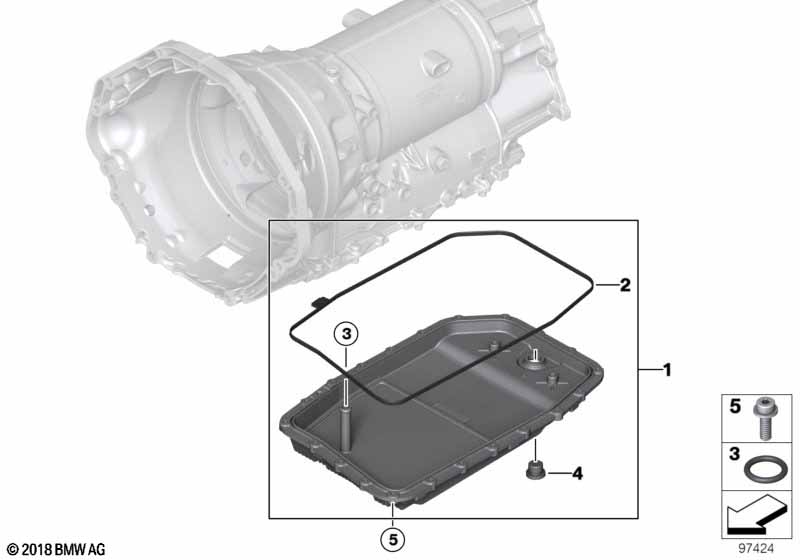

7' E65 740d GA6HP32Z oil pan

GA6HP32Z oil pan
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Kit, oil pan fluid filter auto. trans. VALUE LINE 1 24152333903
02 Gasket, oil pan 1 24117571204 $28.95
03 O-ring 1 24117520714 $1.59
04 Screw plug 1 07/2017 24117520713 $17.35 ENDED
04 Screw plug M24X1 1 24007588766
05 Torx screw M6X28,5 21 24117552108 $2.03
Notes
  • ENDED = the part has been discontinued (no longer available).
