7' E66 730Li Belt Drive Water Pump/Alternator

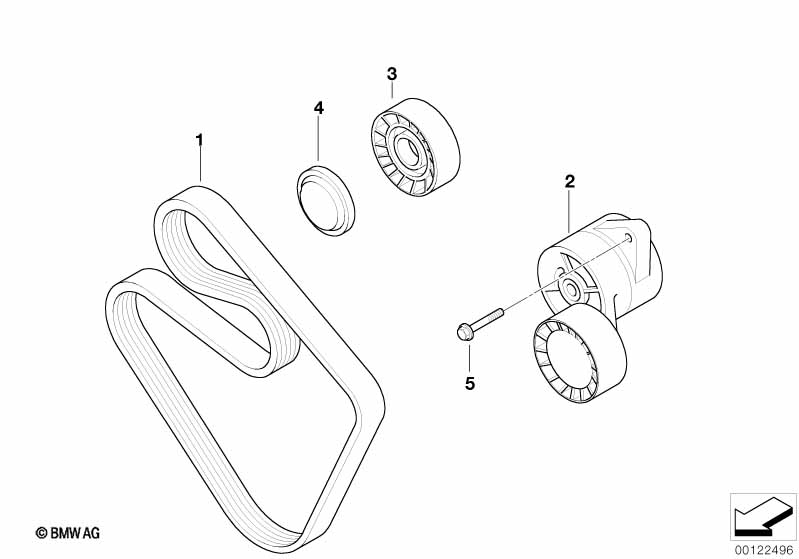

Belt Drive Water Pump/Alternator
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Ribbed v-belt 6PK X 1538 1 11287636379
For vehicles with
Dynamic Drive

S229A=Yes
01 Ribbed v-belt 6PK X 1562 1 11287520072 $41.50 +core
02 Complete hydraulic belt tensioner 1 11287838797 $69.64
only in conjunction with
-- Protection cap 1 12311713143 $0.42
-- Protection cap adjusting pulley 1 11281727159 $2.37
-- Mudguard 1 11281730532 $2.37
-- Adjusting pulley 1 11281748131 $45.97
-- Washer 2 11287835130 $0.72
-- Fillister-head screw M10X25 1 07129905534 $1.50
-- Hex bolt M10X150 1 07119904677 $3.82
-- Hex bolt with washer M8X30-ZNNIV SI 1 07119905532 $1.25
-- Hex bolt with washer M8X35-U1 2 07119905533 $0.44
03 Deflection pulley 1 11287516847 $46.81
04 Protection cap 1 11281435114 $2.37
05 Hex bolt with washer M8X35-U1 2 07119905533 $0.44
Notes
  • +core = plus core charge (possibility of a return of the old part)
