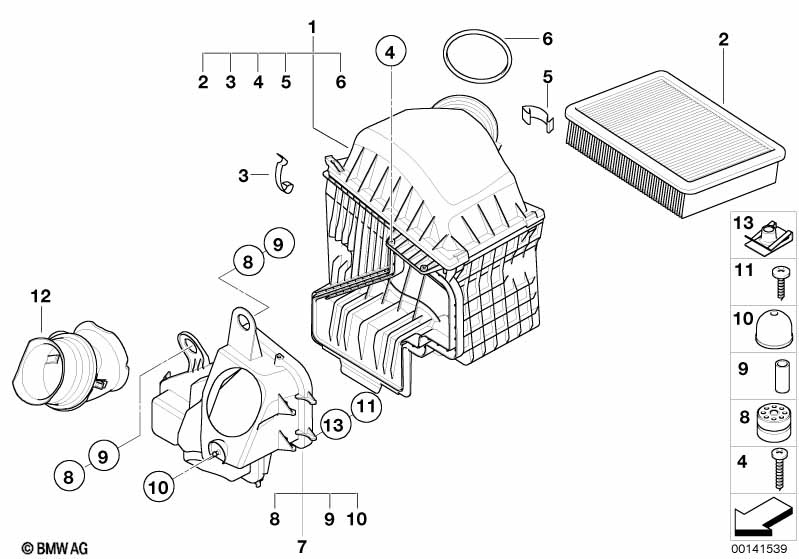

7' E66 730Li Intake silencer / Filter cartridge Intake silencer / Filter cartridge

Intake silencer / Filter cartridge Intake silencer / Filter cartridge
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Intake muffler 1 13717527115
For vehicles with
Hot-climate version

S823A=Yes
01 Intake muffler 1 13717501200
02 Air filter element 1 13717526008 $31.60
For vehicles with
Hot-climate version

S823A=Yes
02 Air filter element 1 13717505007 $47.14
03 Spring clip L=42MM 2 13711716113 $1.16
04 Screw for thermoplastic plastics NS-TS5X20-ZNS3 2 07129904960 $1.53
05 Spring clip L=34MM 2 13711707044 $1.16
06 O-ring 91X6MM 1 13711731893 $4.38
07 Outside-air tray left 1 13717571983 $49.92
08 Rubber grommet 2 13711742771 $4.36
09 Spacer sleeve 2 13717571982 $1.93
10 Rubber buffer 1 04/2004 13711289624 $3.50 ENDED
10 Rubber buffer 1 13717539903 $6.32
11 Fillister head screw 2 07149141775 $0.25
12 Intake duct 1 13717501195 $34.20
13 C-clip nut M6-ZNS3 2 51127070202 $1.00
Notes
  • ENDED = the part has been discontinued (no longer available).
