7' E66 730Li Transmission oil cooler line

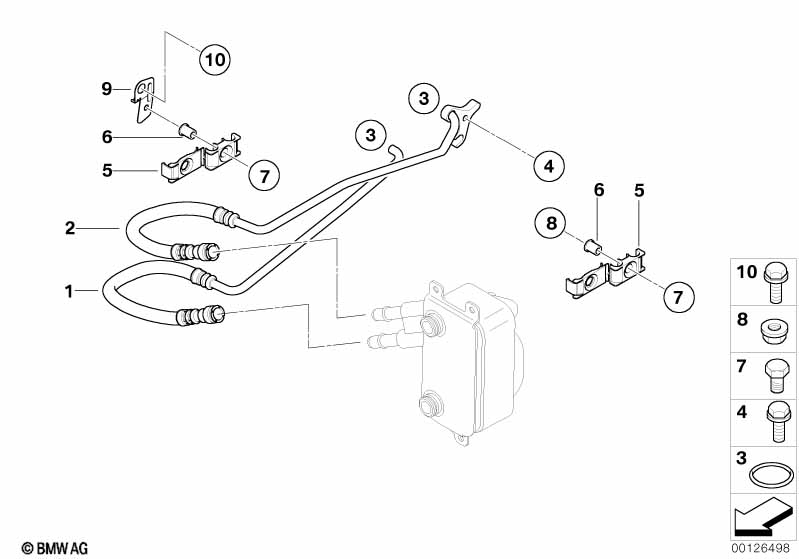

Transmission oil cooler line
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Oil cooling pipe inlet 1 17227524846 +core
02 Oil cooling pipe outlet 1 17227524847 +core
03 O-ring 10,82X1,78/FPM 2 17211742636 $0.80
04 Screw M8X28-Z3 1 17227555715 $0.78
05 Bracket oil pipe 2 17227519270 $3.52
06 Spacer sleeve 2 17227525819 $2.57
07 Hex bolt with washer M6X30-U2-ZNS3 2 07119903994 $0.65
08 Hex nut 1 07129906887 $0.56
09 Bracket oil pipe 1 17227524860
10 Hex bolt with washer M8X18-Z1-ZNS3 1 07119902906 $0.65
Notes
  • +core = plus core charge (possibility of a return of the old part)
