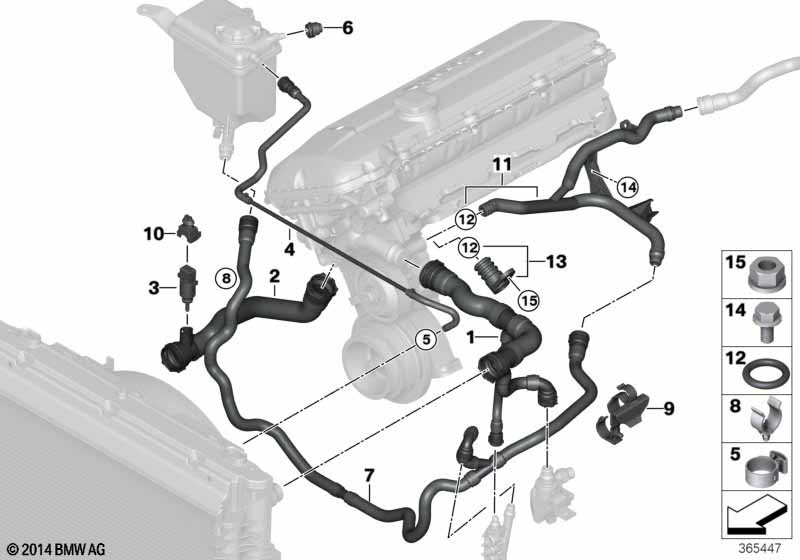

7' E66 730Li Cooling system coolant hoses

Cooling system coolant hoses
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i For vehicles with
Automatic transmission

S205A=Yes
01 Supply hose 1 17127524838 +core
02 Return hose 1 17127519257 $43.58 +core
03 Temperature sensor, coolant 1 13621433077 $25.03
04 Vent pipe 1 17127508012 $35.87 +core
05 Hose clamp L12-14,5 1 32411712735 $0.62
06 Blind plug D=8 1 11531436850 $5.25
07 Return pipe 1 17127524841 +core
08 Diagnosis plug bracket 6 08/2003 11531726298 $1.19
08 Hose clamp 6 17127533721 $1.18
08 Hose clamp 6 03/2003 13311713358 $1.73
10 Socket housing 2 POL. 1 12521427615 $1.73
only in conjunction with
-- Socket terminal SLK 2.8 ELA 0,22-0,5MM² SN 1 12521427608 $0.47
11 Water pipe 1 11537519710 $71.68
12 O-ring 20X3 4 11531435808 $1.81
13 Blind plug 1 11537519733 $7.18
14 Hex bolt with washer M8X20-U1-8.8 3 07119904992 $0.55
15 Hex nut with plate AM6-8-ZNNIV SI 1 07129904553 $0.64
Notes
  • +core = plus core charge (possibility of a return of the old part)
