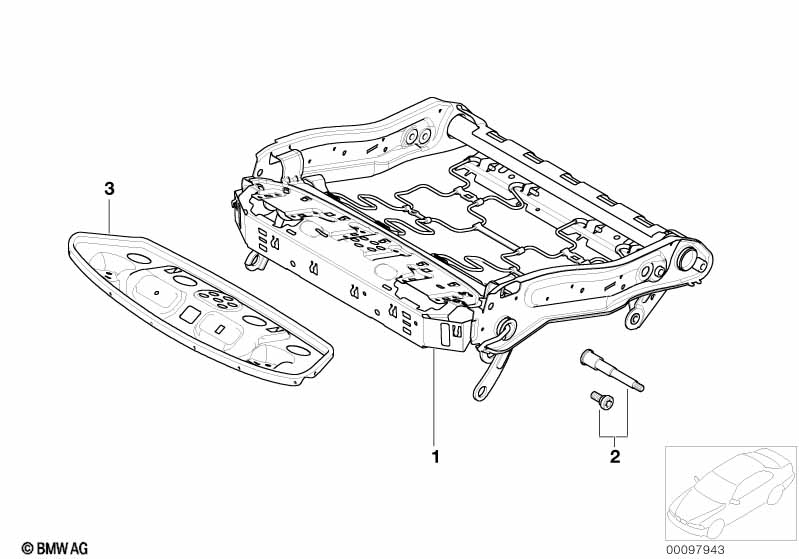

7' E66 730Li Seat, front, seat frame

Seat, front, seat frame
No. Description Supp. Qty  From   Up To  Part Number Price Notes
Passenger's side
01 Seat frame, electr. right 1 52109113128 $512.00 ENDED
01 Seat frame, electr. right 1 09/2007 52109146336 $523.67 ENDED
01 Seat frame, electr., passenger, right 1 52109155660 $541.19
Driver's side
with seat tilt adjustment
01 Seat frame, left 1 01/2006 52107075461 $512.00 ENDED
only in conjunction with
-- Adapter lead, seat 1 01/2006 61127132808 $115.33
01 Seat frame, electr. left 1 52109113127 $512.00 ENDED
01 Seat frame, electr. left 1 52109113127 $512.00 ENDED
01 Seat frame, electr. left 1 09/2007 52109146335 $541.19 ENDED
01 Seat frame, electr., fr. passenger, left 1 52109155659
Passenger's side
without seat tilt adjustment
01 Seat frame, right 1 01/2006 52107075452 $595.69 ENDED
only in conjunction with
-- Adapter lead, seat 1 01/2006 61127132808 $115.33
For vehicles with
Comfort seat with memory

S456A=Yes
01 Seat frame, left 1 01/2006 52107075935 $895.48 ENDED
only in conjunction with
-- Adapter lead, seat 1 01/2006 61127132808 $115.33
01 Seat frame, comfort seat, left 1 09/2007 52109113129 $916.91 ENDED
01 Seat frame, comfort seat, left 1 52109155029 $948.05
01 Seat frame, right 1 01/2006 52107075936 $895.48 ENDED
only in conjunction with
-- Adapter lead, seat 1 01/2006 61127132808 $115.33
01 Seat frame, comfort seat, right 1 09/2007 52109113130 $916.91 ENDED
01 Seat frame, comfort seat, right 1 52109155030 $948.05
For vehicles with
Seat adjuster, electric, with memory
Driver's side

S459A=Yes
01 Seat frame, left 1 03/2003 52107068035 $706.67 ENDED, +core
01 Seat frame, left 1 01/2006 52107075453 $696.93 ENDED
only in conjunction with
-- Adapter lead, seat 1 01/2006 61127132808 $115.33
01 Seat frame, electr. left 1 09/2007 52109113125 $714.44 ENDED
only in conjunction with
-- Adapter lead, seat 1 09/2007 61127132808 $115.33
01 Seat frame, electr., driver, left 1 52109155025 $739.75
only in conjunction with
-- Adapter lead, seat 1 61127132808 $115.33
For vehicles with
Seat adjuster, electric, with memory
and
Sports seat
Passenger's side

S459A=Yes

S481A=Yes
01 Seat frame, right 1 03/2003 01/2006 52107075452 $595.69 ENDED
01 Seat frame, electr. right 1 52109113128 $512.00 ENDED
01 Seat frame, electr. right 1 09/2007 52109146336 $523.67 ENDED
01 Seat frame, electr., passenger, right 1 52109155660 $541.19
For vehicles with
Seat adjuster, electric, with memory
and
Sports seat
Driver's side

S459A=Yes

S481A=Yes
01 Seat frame, left 1 03/2003 01/2006 52107075453 $696.93 ENDED
01 Seat frame, electr. left 1 03/2003 09/2007 52109113125 $714.44 ENDED
01 Seat frame, electr., driver, left 1 03/2003 52109155025 $739.75
For vehicles with
Active seat for driver and passenger
and
Comfort seat with memory

S455A=Yes

S456A=Yes
01 Seat frame, right 1 03/2003 52107068044 $1304.31 ENDED, +core
01 Seat frame, right 1 01/2006 52107075938 $1498.97 ENDED
only in conjunction with
-- Adapter lead, seat 1 01/2006 61127132808 $115.33
01 Seat frame, comfort seat, right 1 09/2007 52109113136 $1537.89 ENDED
01 Seat frame, comfort seat, right 1 52109155032 $1596.29
01 Seat frame, left 1 01/2006 52107075937 $1498.97 ENDED
only in conjunction with
-- Adapter lead, seat 1 01/2006 61127132808 $115.33
01 Seat frame, comfort seat, left 1 09/2007 52109113135 $1537.89 ENDED
01 Seat frame, comfort seat, left 1 52109155031 $1596.29
For vehicles with
Active seat for driver and passenger
and
Seat adjuster, electric, with memory

S455A=Yes

S459A=Yes
01 Seat frame, left 1 03/2003 52107068039 $1109.64 ENDED, +core
01 Seat frame, left 1 01/2006 52107075455 $1284.81 ENDED
only in conjunction with
-- Adapter lead, seat 1 01/2006 61127132808 $115.33
01 Seat frame,act. seat ventilat.electr lft 1 52109113131 $1362.68
01 Seat frame, right 1 03/2003 52107068040 $1109.64 ENDED, +core
01 Seat frame, right 1 01/2006 52107114118 $1284.81 ENDED
01 Seat frame,act. seat ventilat.electr rgh 1 52109113134 $1362.68
For vehicles with
Comfort seat with memory

S456A=Yes
02 Set of screws 2 52107068060 $21.66
03 Seat carrier, front 2 52107075955 $24.97
For vehicles with
Seat adjuster, electric, with memory
and
Sports seat

S459A=Yes

S481A=Yes
03 Seat carrier, front 2 03/2003 08/2004 52107114119 $25.41
03 Seat carrier, front 2 03/2003 52107918492 $23.37 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
