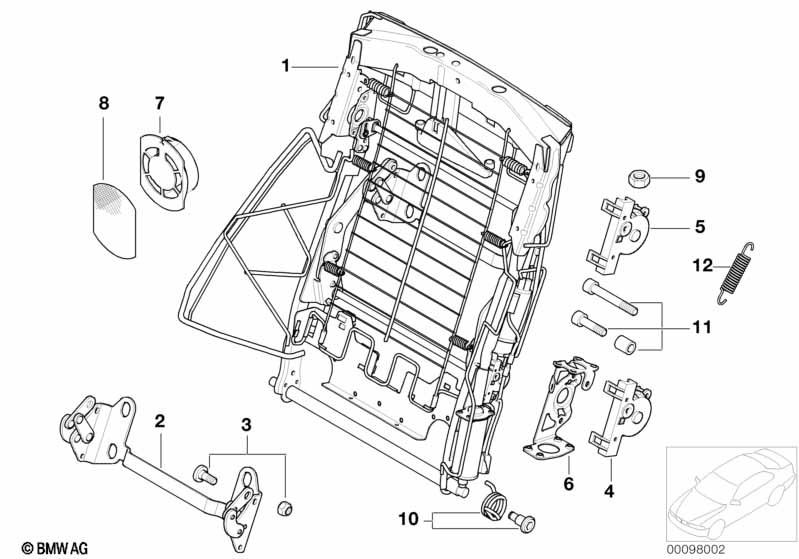

7' E66 730Li Seat rear, electric, backrest

Seat rear, electric, backrest
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Electr.rear seat adjustment

S460A=Yes
01 Backrest frame, left 1 52207070485 $1635.24 +core
01 Backrest frame, right 1 52207070486 $1635.24 +core
02 Pivoted lever 2 52207070480 $83.22 +core
03 Set of fittings, pivoted lever 2 52207070481 $48.02
04 Gear unit, backrest adjustment left 1 52207070507 $108.05 +core
04 Gear unit, backrest adjustment right 1 52207070508 $108.05 +core
05 Gear unit, backrest top, left 1 52207070509 $108.05 +core
05 Gear unit, backrest top, right 1 52207070510 $108.05 +core
06 Bracket left 1 52207070511 $29.98
06 Bracket right 1 52207070512 $29.98
For vehicles with
Climate-controlled seats, rear
and
Electr.rear seat adjustment

S454A=Yes

S460A=Yes
07 Fan 4 52107056235 $50.52 +core
08 Grid, backrest 4 52207062867 $8.52
For vehicles with
Electr.rear seat adjustment

S460A=Yes
09 Self-locking hex nut M8 6 05/2007 51128400426 $0.89 ENDED
09 Self-locking hex nut 6 07149130026
10 Set of fittings, backrest 2 52207070489 $36.35
11 Set of fittings, gear unit 4 52207070491 $18.17
12 Spring 2 52207070493 $21.67
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
