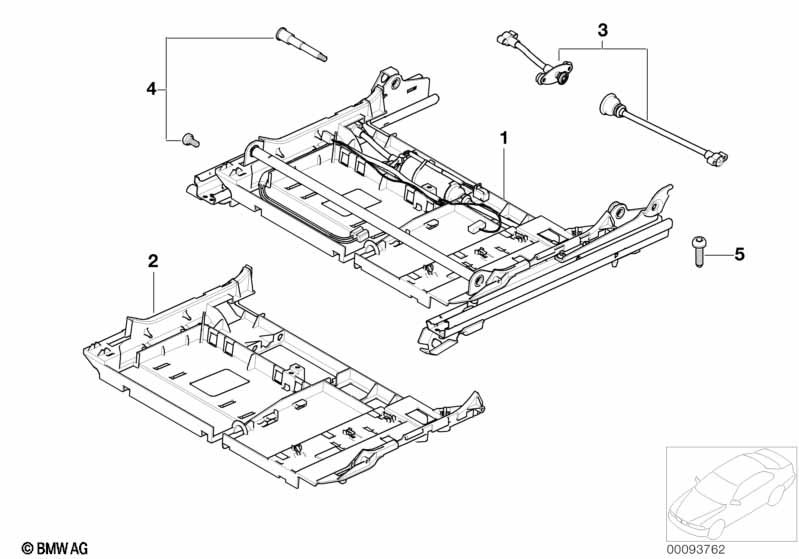

7' E66 730Li Front seat rail

Front seat rail
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i For vehicles with
Basic seat, electrically adjustable

=Yes
01 Seat rail right 1 03/2003 52107136602 $418.72
01 Seat rail left 1 03/2003 52107136603 $418.72
01 Seat rail left 1 03/2003 52107075459 $418.72
only in conjunction with
-- Adapter lead, rail 1 03/2003 61127132806 $115.33
Extended seat rail
01 Seat rail right 1 12/2002 52107117854 $1019.40 ENDED, +core
only in conjunction with
-- Rail adapter set 1 12/2002 52107117852 $247.75 ENDED, +core
01 Seat rail right +30MM 1 03/2003 52107148700 $1162.63 +core
only in conjunction with
-- Adapter lead, rail 1 03/2003 61127132807 $115.33
01 Seat rail left 1 12/2002 52107117855 $1019.40 ENDED, +core
only in conjunction with
-- Rail adapter set 1 12/2002 52107117852 $247.75 ENDED, +core
01 Seat rail left +30MM 1 03/2003 52107148701 $1162.63
only in conjunction with
-- Adapter lead, rail 1 03/2003 61127132806 $115.33
01 Seat rail right +30MM 1 03/2003 52107148700 $1162.63 +core
01 Seat rail left +30MM 1 03/2003 52107148701 $1162.63
02 Rail adapter set 2 03/2003 52107117852 $247.75 ENDED, +core
03 Set of flexible shafts L132 / L225 2 03/2003 52107068058 $87.78
03 Set of flexible shafts L153 / L233 2 03/2003 06/2003 52107114531 $87.78
03 Set of flexible shafts L170 / L249 2 06/2003 52107132801 $87.78
04 Set of screws 2 52107068060 $21.66
05 Fillister head screw M10X37 4 52107027020 $0.98 ENDED
05 Fillister head screw M10X37 4 07149156953 $1.36
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
