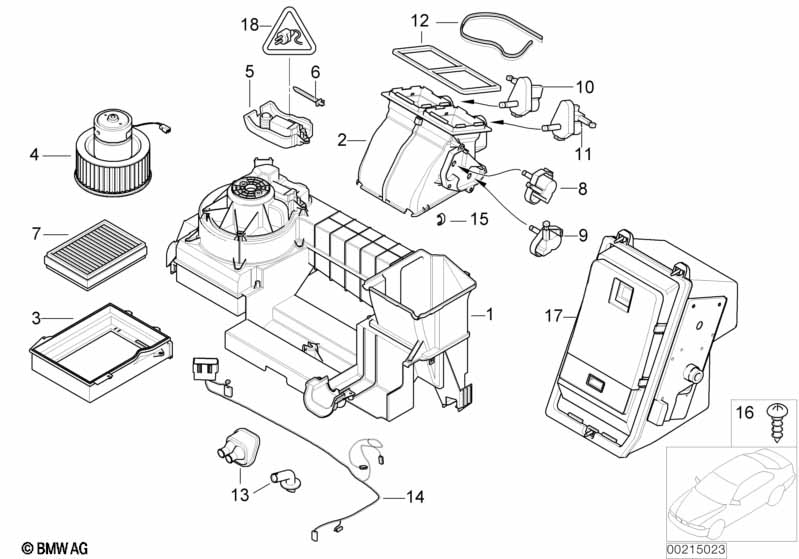

7' E66 730Li Add.air conditio.unit

Add.air conditio.unit
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Empty housing f rear air conditioning 1 64106907742 $210.15
02 Distributor housing 1 64116923434 $209.57
03 Filter housing 1 64116923435 $18.92
04 Blower unit 1 64106907741 $135.22
05 Blower regulator 1 09/2002 64116918873 $112.28 ENDED
05 Blower regulator 1 04/2003 64116928073 $112.28 ENDED
05 Blower regulator 1 64116934390 $156.04
06 Temperature sensor, heater/evaporator 1 11/2002 64118380673 $18.96 ENDED
06 Temperature sensor, heater/evaporator 1 64116930015 $33.45
07 Microfilter/activated Carbon container 1 64106907746 $71.89
08 Actuator, left footwell flap 1 04/2003 64116911825 $72.20 ENDED, +core
08 Actuator, left footwell flap 1 64116935080 $82.13
09 Actuator, left warm air flap 1 04/2003 64116911821 $72.20 ENDED
09 Actuator, left warm air flap 1 64116935075 $82.13
10 Actuator, right cold air duct 1 04/2003 64116911824 $72.20 ENDED, +core
10 Actuator, right cold air duct 1 64116935082 $82.13
11 Actuator air recycling flap 1 04/2003 64116911819 $72.20 ENDED
11 Actuator air recycling flap 1 64116935073 $82.13
12 Set of gaskets 1 64116923438 $6.11
13 Set grommets 1 64116923439 $19.78
14 Wiring set 1 64116923437 $97.92
15 Clamp X 64111370938 $0.38
16 Screw 40X14 X 64118391265 $0.22
17 Coolbox 1 64116942649
18 Universal socket housing, uncoded 3 POL. 1 61138352304 $16.65
only in conjunction with
-- Snap-in receptacle 2.5 1,0-2,5MM² 3 61131376204 $0.98
-- Single conductor seal GELB 1.5-2.5MM² 3 61131383791 $0.20
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
