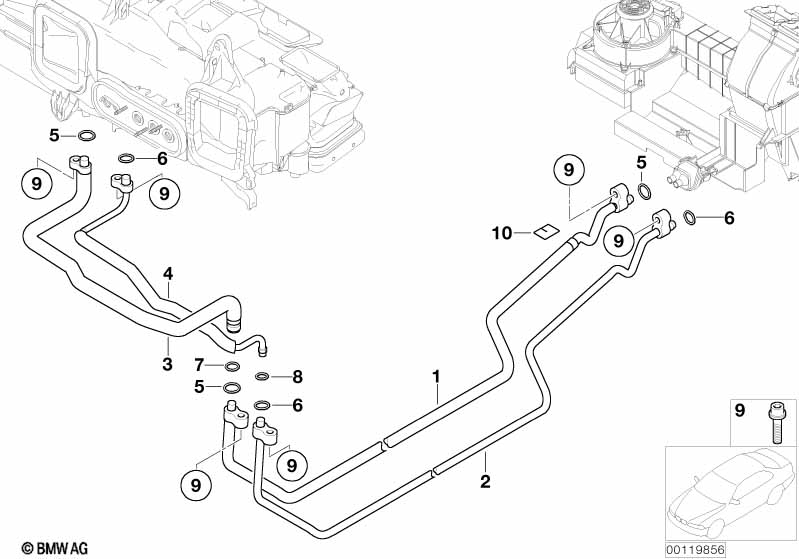

7' E66 730Li Coolant lines, rear air conditioning

Coolant lines, rear air conditioning
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Suction pipe 1 64538385653 $245.90
02 Pressure hose assy 1 64538385654 $179.13
05 Gasket ring D=10,8 MM 2 64508375741 $2.04
06 Gasket ring 9,5X2,5 2 64508374959 $2.69
07 Gasket ring D=14MM 1 64508390603 $1.49
08 Gasket ring D=7,65MM 1 64508390601 $1.93
09 Fillister head with washer M8X30-Z1-ZNS 4 07119901535 $0.64 ENDED
09 Fillister head with washer M8X30-U1-ZNS3 4 07119905720 $0.47
10 Damping strip 80X60X3 1 03/1998 51481963274 $0.68 ENDED
10 Felt strip, self-adhesive 130X40X3 MM 1 03/1998 54347248700 $1.38
10 Sound absorber 120X80X3 1 07/2008 51481963273 $3.18 ENDED
10 Set of felt strips SET 1 07/2008 52207276398 ENDED
10 Set felt strip self-adhesive 1 51452353024
Notes
  • ENDED = the part has been discontinued (no longer available).
