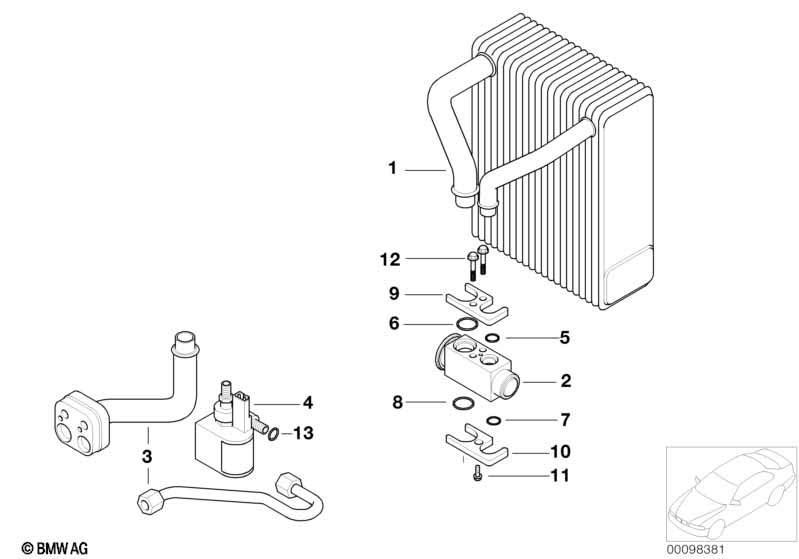

7' E66 730Li Evaporator, additional air conditioning

Evaporator, additional air conditioning
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Evaporator 1 10/2007 64106907744 $575.79 ENDED
01 Evaporator 1 64119134630 $595.51
02 Expansion valve 1 07/2005 64106906269 $134.03 ENDED
02 Expansion valve 1 07/2008 64116980212 $140.05 ENDED
02 Expansion valve 1 64119178315 $145.03
03 Coolant pipe 1 64106907745 $110.28
04 Valve R134A 1 64518390990 $170.32
05 Gasket ring D=11.1MM 1 64508390602 $1.49
06 Gasket ring D=14MM 1 64508390603 $1.49
07 Gasket ring D=7,65MM 1 64508390601 $1.93
08 Gasket ring D=17,17MM 1 64508390604 $2.02
09 Plate 1 64111380572 $7.27
10 Plate 1 64111380573 $8.10
11 Fillister-head screw M6X16-ZNS 1 07119901438 $0.60 ENDED
11 ISA screw M6X16-8.8-ZNNIV 1 07129905536 $0.64
12 Fillister head with washer M5X35 2 64116910423 $1.77
13 Gasket ring 2 64508390600 $0.84
Notes
  • ENDED = the part has been discontinued (no longer available).
