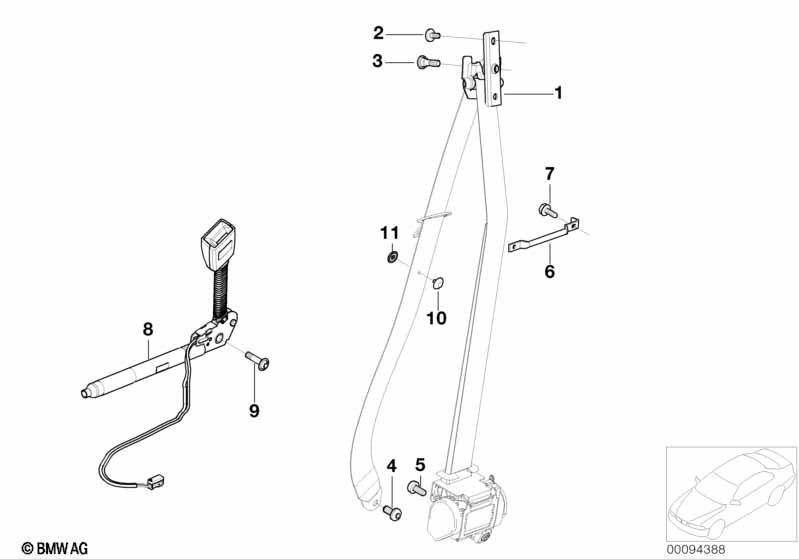

7' E66 730Li Front safety belt mounting parts

Front safety belt mounting parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Belt holder 2 03/2004 72117037738 $9.22 ENDED
01 Belt holder 2 72117168482 $8.75
only in conjunction with
-- Bush 1 72117210226
02 Torx-bolt with washer ISA M8X18 2 07/2007 41628264254 $0.93 ENDED
02 Torx-bolt with washer ISA M8X18 2 07149148311 $0.56
03 Socket head cap screw with shoulder 2 03/2004 72117037930 $1.58
only applies to
-- Belt holder X 03/2004 72117037738 $9.22 ENDED
03 Socket head cap screw with shoulder 2 07147145192 $1.91 ENDED
only in conjunction with
03 Socket head cap screw with shoulder 2 72116985527 $6.70
only in conjunction with
-- Washer 1 72117145873 $1.45
only applies to
-- Belt holder X 72117168482 $8.75
04 Socket head cap screw with shoulder M10X30 2 07/2007 72117037929 $1.68 ENDED
04 Socket head cap screw with shoulder M10X30 2 07146989598 $1.33
05 Fillister head screw M10X22 2 07/2007 72117000107 $1.05 ENDED
05 Fillister head screw M10X22 2 07/2007 07149148299
05 Fillister head screw with collar M10X22 2 07147163333 $1.16
06 Belt deflector 2 72117010929 $3.40
07 Sheet metal screw ST 4,8X13-C-U1 4 07119906163 $0.71
08 Lower belt front left 1 03/2003 72119117203 $134.21 ENDED
only in conjunction with
08 Lower belt front left 1 03/2003 72119177109 $138.94
only in conjunction with
-- Bracket set, seat belt tensioner left 1 03/2003 52107135135 $135.87
-- Fillister head screw 1 03/2003 07147125115 $1.25
08 Lower belt front right 1 03/2003 72119117204 $134.21 ENDED
only in conjunction with
08 Lower belt front right 1 03/2003 72119177110 $138.94
only in conjunction with
-- Bracket set, seat belt tensioner right 1 03/2003 52107135136 $135.87
-- Fillister head screw 1 03/2003 07147125115 $1.25
08 Lower belt front left 1 03/2003 07/2008 72119112569 ENDED
08 Lower belt front left 1 03/2003 72117210869
08 Lower belt front right 1 03/2003 07/2008 72119112570 ENDED
08 Lower belt front right 1 03/2003 72117210870
For vehicles with
Comfort seat with memory
or
Acoustic belt warning

S456A=Yes

S845A=Yes
08 Lower belt front right 1 03/2003 07/2008 72119117204 $134.21 ENDED
08 Lower belt front right 1 03/2003 72119177110 $138.94
08 Lower belt front left 1 03/2003 72119117203 $134.21 ENDED
08 Lower belt front left 1 03/2003 72119177109 $138.94
09 Fillister head screw M10X22 2 03/2003 72117061254 $1.07
09 Fillister head screw 2 03/2003 07147125115 $1.25
Notes
  • ENDED = the part has been discontinued (no longer available).
