5' E34 524td Lubrication system-Oil filter

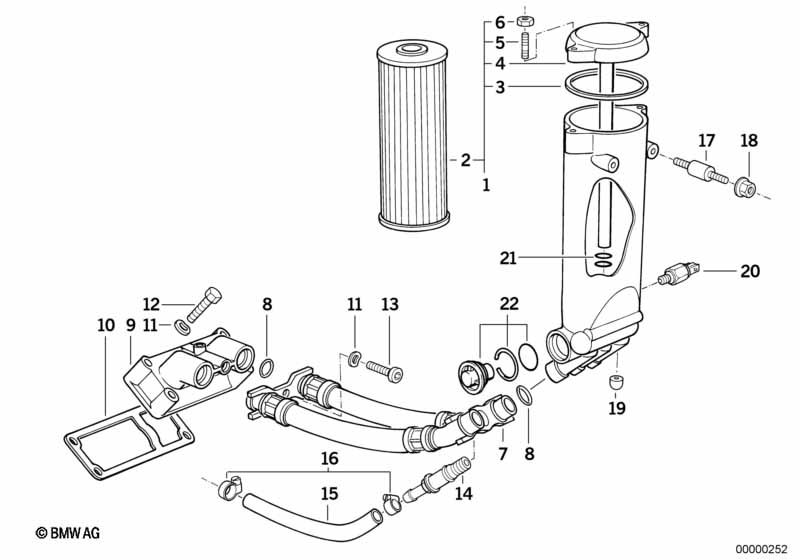

Lubrication system-Oil filter
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Oil filter housing 1 11422242145 +core, SI 111590270
See Service Information SIT 270 11/90
02 Set oil-filter element 1 11429064276 $21.65
03 O-ring 101X4,2 1 11422242433 $2.98
04 Cover 1 11422242432
05 Stud bolt 2 11422242434 ENDED
06 Collar nut M8 2 11421285916 $1.60
07 Oil pipe 1 11422242274 $115.67
08 O-ring 17,2X1,78 4 17211712417 $1.73
09 Adapter 1 11422243198
10 Gasket Asbestos Free 1 11422243865 $2.42
11 Wave washer B8 5 09/1991 07119932095 $0.09 ENDED
11 Wave washer 5 07119904115 $0.09
12 Hex bolt M8X30 4 07119913664 $0.47
13 Fillister-head screw M8X30 1 09/1991 07119919643 $0.82 ENDED
13 ISA screw M8X30-8.8-ZNS3 1 07129904067 $2.43
14 Connector 1 11422242287
15 Hose 1 11427799468
16 Hose clamp L12-15 2 07129952104 $1.18
17 Rubber Mounting 2 13711259818 $6.98
18 Hex nut M6-Z2 2 09/1991 51451868108 $0.50 ENDED
18 Hex nut with plate M6 2 07147134319 $1.05
19 Rubber buffer 1 09/1991 13711289624 $3.50 ENDED
19 Rubber buffer 1 13717539903 $6.32
20 Oil pressure switch M12X1,5 1 12617568480 $11.70 ENDED, +core
20 Oil pressure switch M12X1,5 1 09/1991 12617620512 ENDED, +core
20 Oil pressure switch M12X1,5 1 09/1991 12612367061 ENDED
20 Oil pressure switch M12X1,5 1 12618611273
21 O-ring 6X2 2 11422242988
22 Gasket set 1 11429064265 $9.71
only applies to
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • SI = Service Information
  • ENDED = the part has been discontinued (no longer available).
