5' E34 524td Radiator/frame

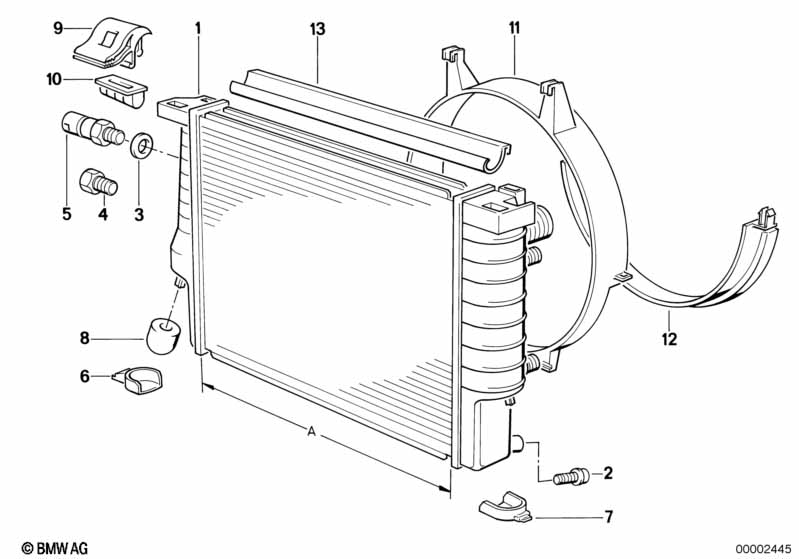

Radiator/frame
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Radiator A=650MM 1 17112242138 $405.97
For vehicles with
Air conditioning

S530A=Yes
01 Radiator A=650MM 1 17112242138 $405.97
02 Drain plug radiator M10 1 17111719384 $7.57
03 Gasket ring A14X20-CUAS 1 07119963244 $0.41
04 Screw plug AM14X1,5 1 07119919228 $0.85
05 Double temperature switch 91/99CEL 1 61311378073 $32.46 SI 120787(777)
06 Bracket f.radiator 10MM 1 17111178449 $1.80
07 Bracket f.radiator 10MM 1 17111178449 $1.80
08 Rubber buffer 2 17111178412 $1.68
09 Bracket upper 2 17111712660 $1.57
10 Rubber Mounting 2 17201719414 $1.18
11 Fan shroud A=650MM 1 17112242030 $26.13
12 Cover 1 17112242031
13 Profile-gasket L=647MM 1 17101712609 $6.47
Notes
  • SI = Service Information
