5' E34 525td Intake manifold-supercharg.air duct

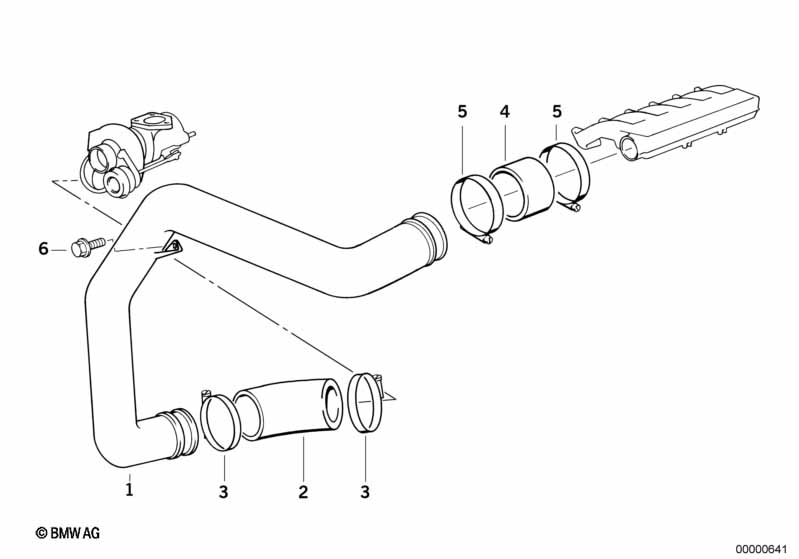

Intake manifold-supercharg.air duct
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Pressure pipe without exhaust gas valve 1 09/1993 11612244426 $71.42 +core
For vehicles with
Catalytic converter

=No
01 Pressure pipe without exhaust gas valve 1 11612244426 $71.42 +core
For vehicles with
  National version Germany
  or
  National version Switzerland
and
  Catalytic converter
  or
  Emission control

L801A=Yes

L804A=Yes

=Yes

=Yes
01 Pressure pipe with exhaust gas valve 1 09/1993 11712244436
02 Hose 1 09/1993 11612244425 +core
For vehicles with
Catalytic converter

=No
02 Hose 1 11612244425 +core
03 Hose clamp L=53-60MM 2 09/1993 07129952123 $1.78
For vehicles with
Catalytic converter

=No
03 Hose clamp L=53-60MM 2 07129952123 $1.78
04 Pressure hose assy 1 09/1993 11612243635
For vehicles with
Catalytic converter

=No
04 Pressure hose assy 1 11612243635
05 Hose clamp L59-66 2 09/1993 07129952125 $1.64
For vehicles with
Catalytic converter

=No
05 Hose clamp L59-66 2 07129952125 $1.64
06 Hex bolt with washer M8X16-Z1 1 09/1993 07119900268 $0.53
For vehicles with
Catalytic converter

=No
06 Hex bolt with washer M8X16-Z1 1 07119900268 $0.53
Notes
  • +core = plus core charge (possibility of a return of the old part)
