5' E34 530i Flywheel / Twin Mass Flywheel

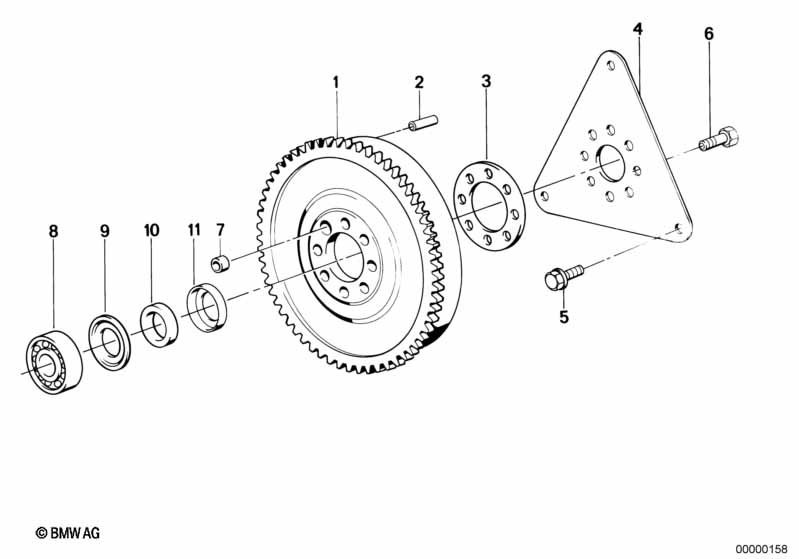

Flywheel / Twin Mass Flywheel
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Flywheel 1 11/1987 11221730680 $443.67
only in conjunction with
-- Shim 1 11/1987 11221715527 $40.49
02 Pin 4X16 1 07119943491 ENDED
03 Shim 1 11221715527 $40.49
04 Driving dog 4HP22 1 24401215514 $65.27
05 Hex bolt M10X17,5 3 24001421067 $0.75
06 Hex bolt M12X1,5X22 8 11220616143 $3.77
07 Dowel D=14,5MM 1 11111743118 $1.65
Notes
  • ENDED = the part has been discontinued (no longer available).
