5' E34 M5 3.8 Bottom housing mounting parts

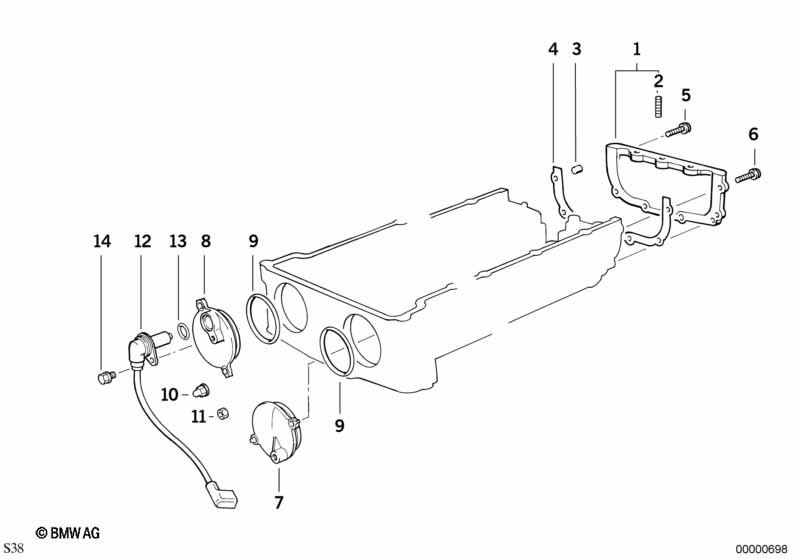

Bottom housing mounting parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Cover 1 11121306734 $162.65
02 Stud bolt M6X30-ZN 3 07/1995 07129908102 $0.36 ENDED
02 Stud bolt M6X30-ZNNIV SI 3 07129904544 $1.42
03 Dowel 2 11121250717 $1.87 ENDED
03 Dowel D=8,5X9MM 2 11121726242 $1.07
04 Gasket Asbestos Free SI255 11/90 1 11121306729 $2.38
05 Hex bolt with washer M6X25-Z3 2 07119915046 $0.47
06 Hex bolt with washer M6X20-Z3 4 07119915031 $0.24
07 Cover lid 1 11121312323 $103.67
08 Cover lid 1 11121317459 $20.56
09 O-ring 60X3 2 12111252257 $3.82
10 Cap nut M6-Z1 2 11121720113 $2.48 ENDED
10 Cap nut M6 2 11617549043 $3.23
11 Hex nut M6-8-ZNS 2 07119922832 $0.37 ENDED
11 Hex nut M6-8-ZNNIV SI 2 07119905543 $0.38
12 Trigger contact 1 12141317957 $116.05
13 O-ring 18X2 1 12141727220 $0.70
14 Fillister head with washer M6X16-Z1-8.8-ZN 1 07/1995 07119920067 $0.60 ENDED
14 Fillister head with washer M6X16-Z1-8.8 1 07119902316 $2.84
Notes
  • ENDED = the part has been discontinued (no longer available).
