5' E34 535i Valve Timing Gear - Cam Shaft

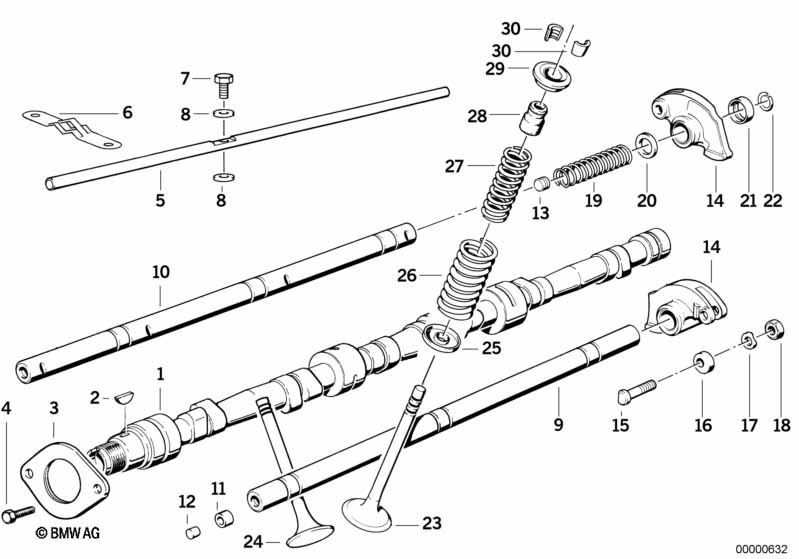

Valve Timing Gear - Cam Shaft
No. Description Supp. Qty  From   Up To  Part Number Price Notes
23 Intake valve 47,0/8,00MM 6 11341705560 $44.67
23 Intake valve w.oversize VA.system +0,1mm 47,0/8,10MM 6 11341711534 $90.68 ENDED
23 Intake valve w.oversize VA.system +0,2mm 47,0/8,20MM 6 11341711535 $47.43 ENDED
24 Exhaust valve 38,0/8,00MM 6 11341710788 $77.29
24 Exh. valve w.oversize VA.system +0,1mm 38,0/8,10MM 6 11341711536 $177.20 ENDED
24 Exhaust valve w.oversize VA.system+0,2mm 38,0/8,20MM 6 11341711537 $177.20 ENDED
25 Spring pocket X 11341713413 $3.77
26 Valve spring D=31,2MM X 11341714768 $7.88
27 Valve spring D=21,2MM X 11341714767 $7.88
28 Repair kit valve seal ring D=10,8MM 1 11349059170 $46.94
29 Upper spring plate X 11341713412 $3.77
30 Valve collet X 11341710975 $1.08
Notes
  • ENDED = the part has been discontinued (no longer available).
