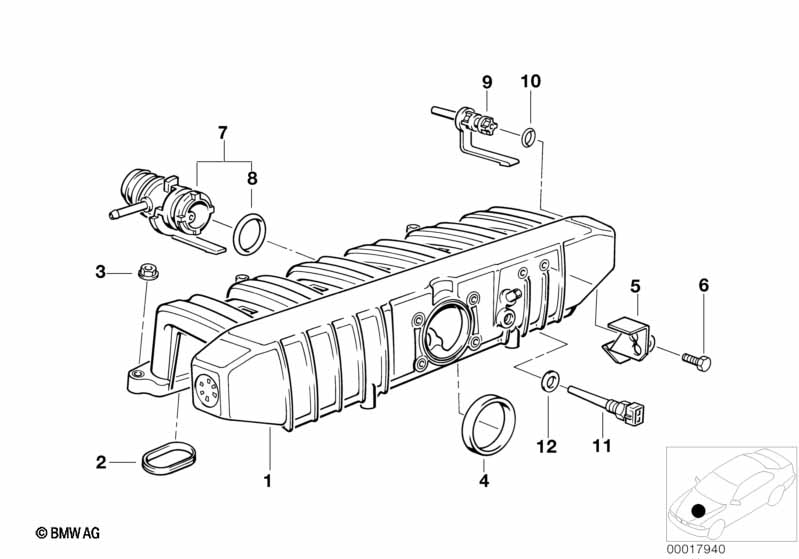

5' E34 525i Intake manifold system

Intake manifold system
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Intake manifold 1 09/1990 11611738354 $560.79 ENDED
only in conjunction with
-- Gasket ring 1 09/1990 11611735735 $0.81
-- Washer-gasket 1 09/1990 11611735736 $0.77
-- Connector 1 09/1990 11611735800 $5.42
-- Connector 1 09/1990 11611738629 $5.42
02 Gasket 6 09/1990 11611717259 $8.46
03 Hex nut with plate AM7 X 09/1990 07129902630 $0.35 ENDED
03 Hex nut with plate AM7 ZNNIV SI X 09/1990 07129905541 $0.64
04 Profile-gasket 1 09/1990 11611716174 $15.02
05 Bracket 1 09/1990 11611726531 $2.25
06 Hex bolt with washer M6X12-Z1 2 09/1990 07119915017 $0.36 ENDED
06 Hex bolt with washer M6X12-U1-8.8 2 09/1990 07119904517 $0.36
07 Connector 1 09/1990 11611730265 $5.77
08 O-ring 24X3,5 1 09/1990 11611730725 $6.08
09 Connector 1 09/1990 11611730266 $1.77 ENDED
10 O-ring 7,4X2,8 1 09/1990 11611735479 $0.88 ENDED
10 O-ring 7X3 1 09/1990 11617502761 $0.88
11 Intake air temperature sensor 2500-OHM 1 09/1990 13621725323 $36.33 ENDED
11 Intake air temperature sensor 1 09/1990 13621725324
12 Gasket ring A12X15,5 AL 1 09/1990 07119963130 $0.09
Notes
  • ENDED = the part has been discontinued (no longer available).
