5' E34 525i Valve Timing Gear - Cam Shaft

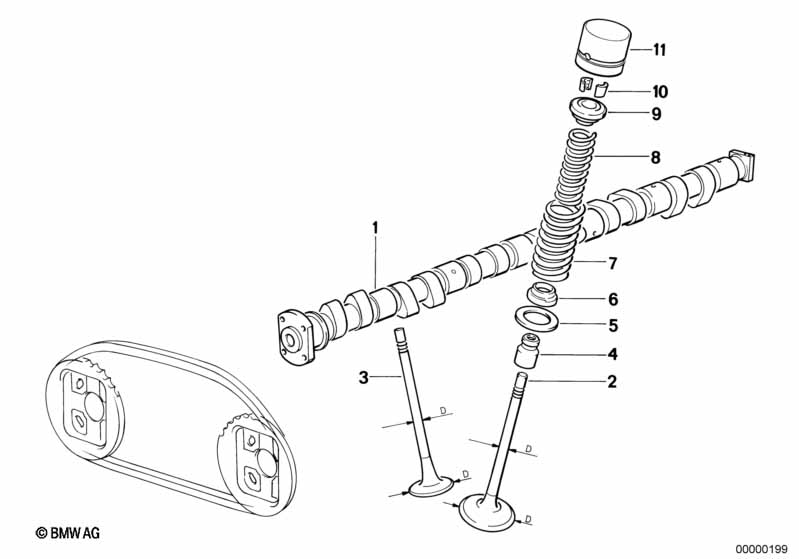

Valve Timing Gear - Cam Shaft
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Inlet camshaft 1 09/1992 11311718885 $636.25
01 Camshaft exhaust 1 09/1992 11311718886 $636.25
02 Intake valve 33,0/6,97MM X 09/1992 11341722908 $44.04
VALVE HEAD THICKNESS: +0,4MM
02 Intake valve w.oversize VA.system +0,2mm 33,0/7,17MM X 09/1992 11341730655 $111.04 ENDED
VALVE HEAD THICKNESS: +0,2MM
02 Intake valve w.oversize VA.system +0,1mm 33,0/7,07MM X 09/1992 11341726058 $61.38 ENDED
02 Intake valve X 09/1992 11341726262 ENDED
03 Exhaust valve 30,5/6,96MM X 09/1992 11341722909 $73.85 ENDED
03 Exhaust valve X 09/1992 11341722891
VALVE HEAD THICKNESS: +0,4MM
03 Exhaust valve w.oversize VA.system+0,2mm 30,5/7,16MM X 09/1992 11341730656 $129.76
VALVE HEAD THICKNESS: +0,2MM
03 Exh. valve w.oversize VA.system +0,1mm 30,5/7,06MM X 09/1992 11341726059 $129.76
04 Repair kit valve seal ring 2 09/1992 11349059172 $46.94
05 Lower spring plate X 09/1992 11341726969 $3.77
06 Lower spring plate X 09/1992 11341722544 $3.77
07 Valve spring X 09/1992 11341730530 $7.88
08 Valve spring X 09/1992 11341726473 $7.88
09 Upper spring plate X 09/1992 11341722822 $3.77
10 Valve collet X 09/1992 11341307136 $1.08
11 Hydraulic valve lifter X 09/1992 11321734341 $32.50
Notes
  • ENDED = the part has been discontinued (no longer available).
