5' E34 525i Cooling System Water Hoses

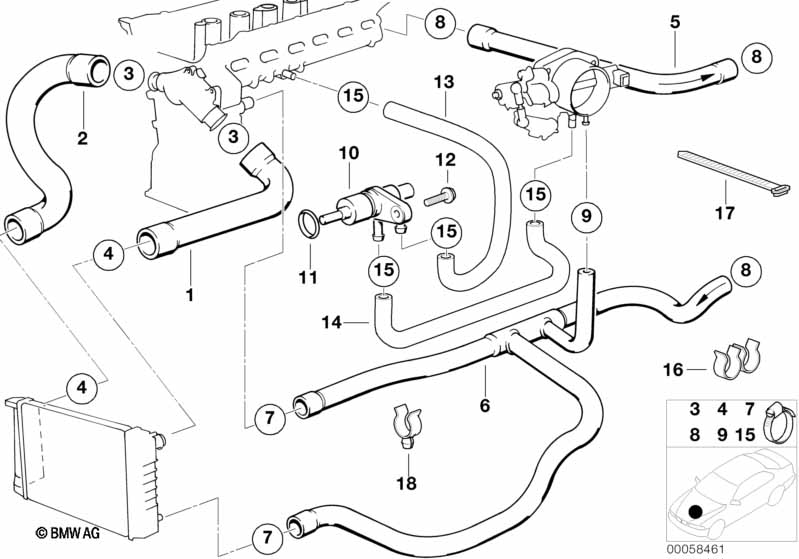

Cooling System Water Hoses
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Water hose 1 09/1990 11531720678 $22.64
02 Water hose 1 09/1990 11531722852 $33.96
03 Hose clamp L=47-54MM 4 09/1990 07129952121 $1.42
05 Hose f engine inlet and water valve 1 09/1990 64211391387 $29.23
06 Return hose 1 09/1990 03/1991 11531726506 $77.67
06 Return hose 1 03/1991 11531738054 $77.67
07 Hose clamp L28-33 3 09/1990 07129952113 $0.96
08 Hose clamp L16-30 3 09/1990 64218367179 $1.07
09 Hose clamp L15-19 2 09/1990 07129952107 $0.93
10 Thermostat 1 09/1990 13541730682 $62.63
11 O-ring 1 09/1990 13541735380 $2.48
12 Hex bolt with washer M6X16-Z1 1 09/1990 01/1996 07119915039 $0.27 ENDED
12 Hex bolt with washer M6X16-U1-ZNS3 1 09/1990 07119903844 $0.38
12 Hex bolt with washer M6X16-U1-8.8 1 09/1990 07119904524 $0.25
13 Hose 1 09/1990 09/1991 13541730683 $12.90
13 Hose 1 09/1991 13541738622 $12.28
14 Hose 1 09/1990 13541730684 $12.08
15 Hose clamp L15-18 4 09/1990 11151727509 $1.02
16 Hose clamp D=13/16MM 1 09/1990 09/1991 11611735148
16 Holder D=16MM 1 09/1990 09/1991 13541735480
16 Clamp D=24,5MM 1 09/1990 61131379580 $0.63
16 Hose clamp 1 09/1991 11611738165 $4.93
17 Cable tie L=292MM/B=4,8MM 1 09/1990 61131377134 $0.77
Notes
  • ENDED = the part has been discontinued (no longer available).
