5' E34 525i Lubrication system-Oil filter

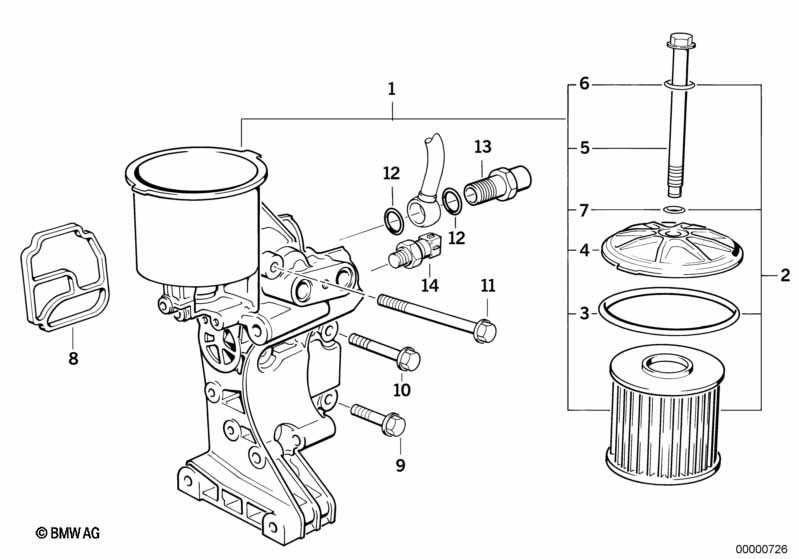

Lubrication system-Oil filter
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Aggregate support with oil filter 1 09/1992 11421738639 $383.27 ENDED
01 Aggregate support with oil filter 1 09/1992 11421738640
02 Set oil-filter element 1 09/1992 11421730389 $12.25
03 O-ring 91X4 1 09/1992 11421741000 $5.04
04 Oil filter cover 1 09/1992 11421711075 $26.45
05 Screw 1 09/1992 11421711567 $7.07 ENDED
05 Screw 1 09/1992 11427839820 $7.07
06 Gasket ring A10X14-ST 1 09/1992 07119963080 $0.82
07 O-ring 4,5X1,5 1 09/1992 11421711076 $0.37
08 Gasket 1 09/1992 11421719855 $6.08
09 Hex bolt with washer M8X50-Z3 3 09/1992 07119912980 $0.82
10 Hex bolt with washer M8X65-Z3 2 09/1992 07119913003 $0.96
11 Hex bolt with washer M8X100-Z3 1 09/1992 07119912574 $1.78
12 Gasket ring A14X20-CUSN 2 09/1992 32411093596 $0.31
12 Gasket ring A14X20-ALMG 2 09/1992 32411129986 $0.15
13 Hollow bolt M14X1,5X26 1 09/1992 06/1996 32411094908 $2.78 ENDED
13 Hollow bolt M14X1,5X26 1 09/1992 32416783886 $2.11 ENDED
13 Hollow bolt M14X1,5X26 1 09/1992 32416852469
14 Oil pressure switch M12X1,5 1 09/1992 12611710509 $10.82 ENDED, +core
14 Oil pressure switch M12X1,5 1 09/1992 12617568480 $11.70 ENDED, +core
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
