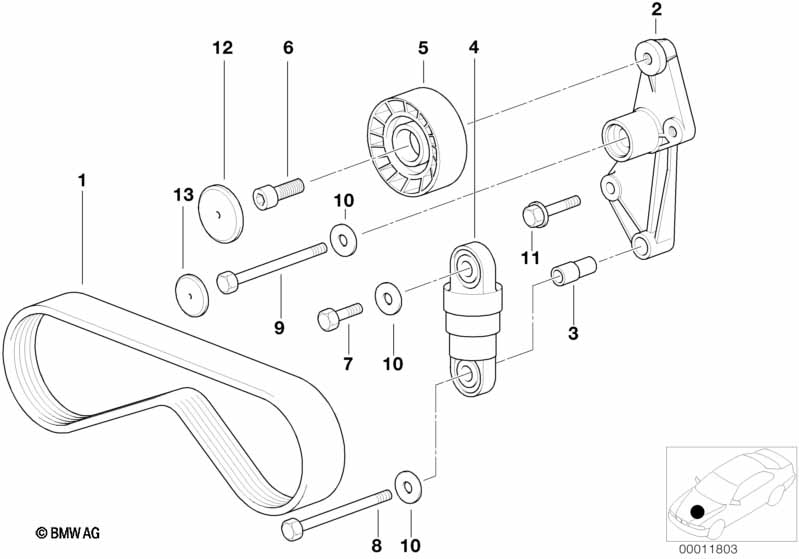

5' E34 525i Belt Drive Climate Compressor

Sponsored links

No.	Description	Supp.	Qty	From	Up To	Part Number	Price	Notes
01	Ribbed v-belt	5K X 890	1		01/1992	11281703943	$26.28
01	Ribbed v-belt	5PK 906	1	01/1992	06/1996	11281437873	$26.28	ENDED
01	Ribbed v-belt	5PK 906	1	01/1992		11281437449
02	Base plate with drop arm		1			11281433632	$119.71
03	Bush		1			11281748718	$8.39
04	Belt tensioner		1			11281717210	$112.15
05	Adjusting pulley		1			11281748131	$45.97
06	Fillister-head screw	M10X22	1			07119901979	$1.98
07	Hex bolt	M8X35-8.8-ZNS	1		07/1996	07119913111	$0.94	ENDED
07	Hex bolt	M8X35-8.8-ZNS3	1		07/1996	07119904252	$0.82	ENDED
07	Fillister-head screw	M8X35-10.9-ZNS3	1			07119906650	$0.87
08	Hex bolt	M8X75	1		07/1996	07119902181	$0.63	ENDED
08	Hex bolt	M8X75-8.8-ZNS3	1			07119906028
09	Hex bolt	M8X85	1			07119902180	$1.18
10	Washer		3		07/1996	11281440369	$0.70	ENDED
10	Washer		3			11287835130	$0.72
10	Washer		3		07/1996	11281713157	$0.58	ENDED
10	Washer		3			11287835130	$0.72
11	Hex bolt with washer	M8X40-Z1-ZNS	1			07119900293	$0.46	ENDED
11	Hex bolt with washer	M8X40-U1-8.8	1			07119904514	$0.49
12	Protection cap adjusting pulley		1			11281727159	$2.37
13	Protection cap		1			12311713143	$0.42
