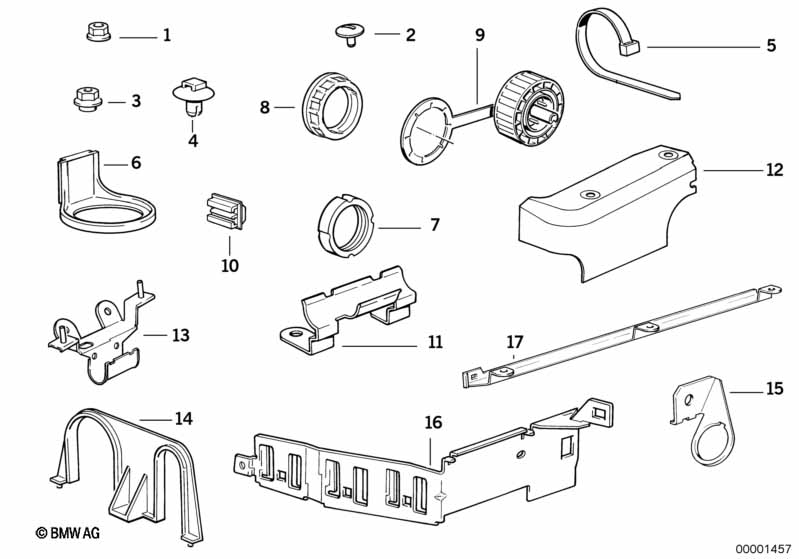

5' E34 525ix Cable Harness Fixings

Cable Harness Fixings
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Nut M5 X 07/1996 12521719646 $0.27 ENDED
01 Flange nut M5 X 07141732625 $0.14
01 Nut M6 X 07/1996 12521719647 $0.38 ENDED
01 Nut M6 X 07146973709 $0.27
01 Flange nut M8 X 07/1996 12521719648 $0.33 ENDED
01 Hex nut M8 X 07149125856 $1.33
02 Push-button 1 61661368599 $0.53
03 Push-button 1 17111709419 $0.33
04 Push-button 1 51481900729 $0.50
05 Cable tie L=292MM/B=4,8MM X 61131377134 $0.77
06 Diagnosis plug bracket DIAGNOSE 1 09/1990 61131388867 $2.18
07 Nut DIAGNOSE 1 12521711219 $4.02
08 Lock Ring 1 12521732696 $2.10
09 Cover, diagnostics plug 1 12521724690 $15.78
10 Bracket, plug connection black 1 61131378944 $0.87
11 Bracket, cable harness 1 12521718035 $1.51 ENDED
12 Cover 1 12521724714 $13.18
13 Holder 1 12521724590 $11.90 ENDED
14 Bracket, cable harness 1 12521711244 $1.68
15 Lambda-probe bracket 1 12521724390 $1.90
16 Diagnosis plug bracket 1 12521718011 $7.10
17 Cover 1 12521724149 $19.51
Notes
  • ENDED = the part has been discontinued (no longer available).
