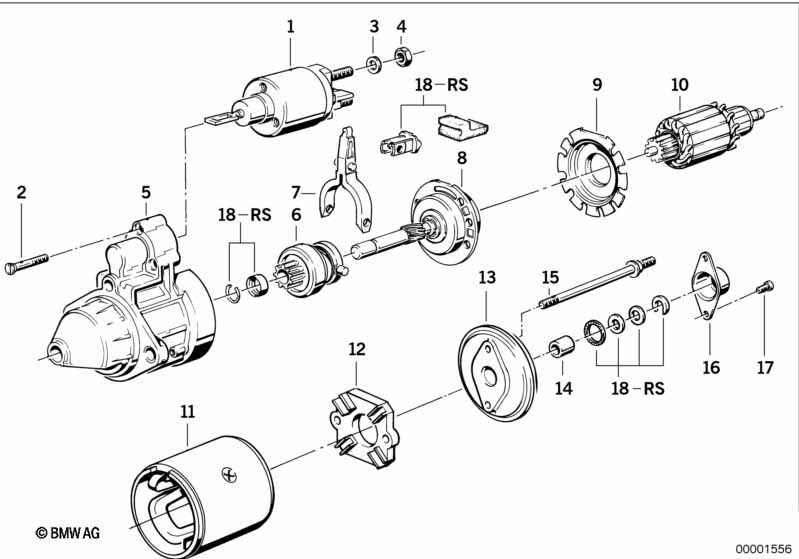

5' E34 525ix Starter parts 1,4kw

Starter parts 1,4kw
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i ONLY APPLIES TO STARTER BOSCH
Typ Nr. 0 001 108 115
01 Solenoid switch 1 12411726039 $140.48
only applies to
-- Starter 1,4KW BOSCH X 12411735400 $414.59 ENDED
-- Exch. starter motor 1,4KW BOSCH X 12411735524 $192.81 ENDED, +core
-- Exch. starter motor 1,4KW X 12411740378 $190.13 ENDED
02 Countersunk head screw 3 12411721286 $2.45
only applies to
-- Starter 1,4KW BOSCH X 12411735400 $414.59 ENDED
-- Exch. starter motor 1,4KW BOSCH X 12411735524 $192.81 ENDED, +core
-- Exch. starter motor 1,4KW X 12411740378 $190.13 ENDED
03 Spring washer B8 2 07119933096 $0.18
only applies to
-- Starter 1,4KW BOSCH X 12411735400 $414.59 ENDED
-- Exch. starter motor 1,4KW BOSCH X 12411735524 $192.81 ENDED, +core
-- Exch. starter motor 1,4KW X 12411740378 $190.13 ENDED
04 Hex nut M8-05-ZNNIV SI 2 07119904948 $1.00
04 Hex nut BM8 2 07119921077 $0.13 ENDED
only applies to
-- Starter 1,4KW BOSCH X 12411735400 $414.59 ENDED
-- Exch. starter motor 1,4KW BOSCH X 12411735524 $192.81 ENDED, +core
-- Exch. starter motor 1,4KW X 12411740378 $190.13 ENDED
05 Housing assy front 1 12411735399 $55.50
only applies to
-- Starter 1,4KW BOSCH X 12411735400 $414.59 ENDED
-- Exch. starter motor 1,4KW BOSCH X 12411735524 $192.81 ENDED, +core
-- Exch. starter motor 1,4KW X 12411740378 $190.13 ENDED
06 Free wheel pinion 1 12411721281 $61.43
only applies to
-- Starter 1,4KW BOSCH X 12411735400 $414.59 ENDED
-- Exch. starter motor 1,4KW BOSCH X 12411735524 $192.81 ENDED, +core
-- Exch. starter motor 1,4KW X 12411740378 $190.13 ENDED
07 Shift lever 1 12411721285 $6.50
only applies to
-- Starter 1,4KW BOSCH X 12411735400 $414.59 ENDED
-- Exch. starter motor 1,4KW BOSCH X 12411735524 $192.81 ENDED, +core
-- Exch. starter motor 1,4KW X 12411740378 $190.13 ENDED
08 Planet wheel set 1 12411735885 $162.94
only applies to
-- Starter 1,4KW BOSCH X 12411735400 $414.59 ENDED
-- Exch. starter motor 1,4KW BOSCH X 12411735524 $192.81 ENDED, +core
-- Exch. starter motor 1,4KW X 12411740378 $190.13 ENDED
09 Cover 1 12411738260 $4.35
only applies to
-- Starter 1,4KW BOSCH X 12411735400 $414.59 ENDED
-- Exch. starter motor 1,4KW BOSCH X 12411735524 $192.81 ENDED, +core
-- Exch. starter motor 1,4KW X 12411740378 $190.13 ENDED
10 Armature 1 12411721287 $316.94 ENDED
only applies to
-- Starter 1,4KW BOSCH X 12411735400 $414.59 ENDED
-- Exch. starter motor 1,4KW BOSCH X 12411735524 $192.81 ENDED, +core
-- Exch. starter motor 1,4KW X 12411740378 $190.13 ENDED
11 Exciter winding 1 12411735889 $218.74 ENDED
only applies to
-- Starter 1,4KW BOSCH X 12411735400 $414.59 ENDED
-- Exch. starter motor 1,4KW BOSCH X 12411735524 $192.81 ENDED, +core
-- Exch. starter motor 1,4KW X 12411740378 $190.13 ENDED
12 Brush holder plate 1 12411722849 $107.02
only applies to
-- Starter 1,4KW BOSCH X 12411735400 $414.59 ENDED
-- Exch. starter motor 1,4KW BOSCH X 12411735524 $192.81 ENDED, +core
-- Exch. starter motor 1,4KW X 12411740378 $190.13 ENDED
13 Collector guiding 1 12411721288 $25.95 ENDED
only applies to
-- Starter 1,4KW BOSCH X 12411735400 $414.59 ENDED
-- Exch. starter motor 1,4KW BOSCH X 12411735524 $192.81 ENDED, +core
-- Exch. starter motor 1,4KW X 12411740378 $190.13 ENDED
14 Bushing 1 12411721289 $4.42
only applies to
-- Starter 1,4KW BOSCH X 12411735400 $414.59 ENDED
-- Exch. starter motor 1,4KW BOSCH X 12411735524 $192.81 ENDED, +core
-- Exch. starter motor 1,4KW X 12411740378 $190.13 ENDED
15 Screw 1 12411721290 $9.15 ENDED
only applies to
-- Starter 1,4KW BOSCH X 12411735400 $414.59 ENDED
-- Exch. starter motor 1,4KW BOSCH X 12411735524 $192.81 ENDED, +core
-- Exch. starter motor 1,4KW X 12411740378 $190.13 ENDED
16 Covering cap 1 12411721291 $2.34 ENDED
only applies to
-- Starter 1,4KW BOSCH X 12411735400 $414.59 ENDED
-- Exch. starter motor 1,4KW BOSCH X 12411735524 $192.81 ENDED, +core
-- Exch. starter motor 1,4KW X 12411740378 $190.13 ENDED
17 Fillister-head screw 2 12411722775 $0.30
only applies to
-- Starter 1,4KW BOSCH X 12411735400 $414.59 ENDED
-- Exch. starter motor 1,4KW BOSCH X 12411735524 $192.81 ENDED, +core
-- Exch. starter motor 1,4KW X 12411740378 $190.13 ENDED
18 Repair kit starter motor 1 12411721297 $23.43
only applies to
-- Starter 1,4KW BOSCH X 12411735400 $414.59 ENDED
-- Exch. starter motor 1,4KW BOSCH X 12411735524 $192.81 ENDED, +core
-- Exch. starter motor 1,4KW X 12411740378 $190.13 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
