5' E34 525ix Wiring connections

Wiring connections

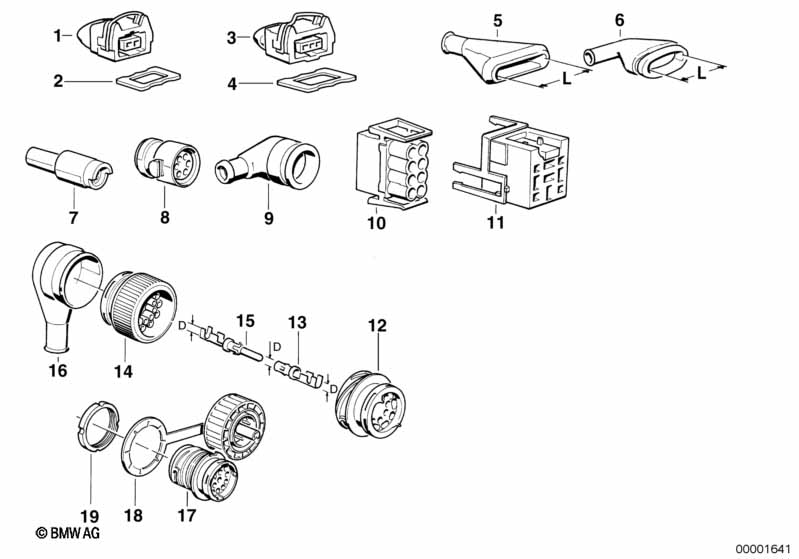

No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Plug housing 2-POL X 06/1986 12521706121 $5.77 ENDED
01 Plug housing 2 POL. X 12521706091 $4.02
02 Gasket 2-POL X 12521732593 $1.11
03 Plug housing 3 POL. X 06/1986 12521706068 $8.52 ENDED
03 Plug housing X 12521706096 $7.59
05 Protection cap L=12,5MM X 61131358330 $5.33
05 Protection cap L=17,5MM X 61131358603 $5.32
06 Protection cap L=27,0MM X 61131459414 $5.90 ENDED
07 Plug housing LAMBDA 1 61131373239 $4.27
08 Plug housing 6-POL 1 12521707321 $12.77
09 Protection cap 1 12521711262 $3.22
11 Relais base black 4 61131389114 $5.32
12 Plug housing 20POL 1 12521707284 $8.28 ENDED
12 Plug terminal engine wiring harness 25 POL 1 61131387109 $8.35
13 Snap-in receptacle 2.5 0,5-1,0MM² X 61131376202 $0.98
13 Snap-in receptacle 2.5 1,0-2,5MM² X 61131376204 $0.98
13 Snap-in receptacle 2.5 2,5-4,0MM² X 61131376206 $0.98
14 Plug housing 20POL 1 12521707283 $13.40
14 Plug terminal engine wiring harness 25-POL 1 61131387108 $12.67
15 Circular contact 2.5 0,5-1,0MM² X 61131376191 $0.55
15 Circular contact 2.5 1,0-2,5MM² X 61131376193 $1.12
15 Circular contact 2.5 2,5-4,0MM² X 61131376195 $1.05
16 Protection cap KBB 1 12521707302 $2.87
17 Plug housing DIAGNOSE 1 12521711218 $8.52
18 Cover, diagnostics plug 1 12521724690 $15.78
19 Nut DIAGNOSE 1 12521711219 $4.02
Notes
  • ENDED = the part has been discontinued (no longer available).
