5' E34 525ix Wheelhouse/engine support

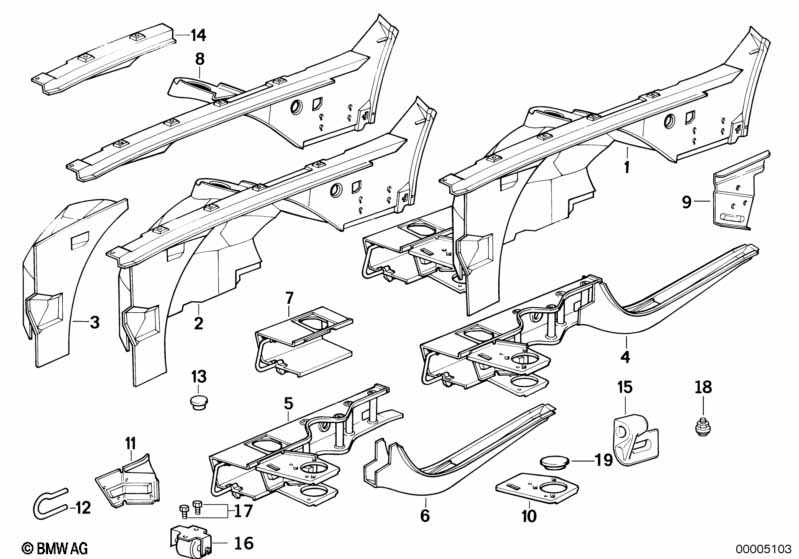

Wheelhouse/engine support
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Front left wheelhouse BASIS 1 09/1993 41148137161 ENDED
only in conjunction with
01 Wheelhousing, front right BASIS 1 09/1993 41148137162 ENDED
only in conjunction with
-- Earth pin M6X12 X 09/1993 41248185432
01 Front left wheelhouse BASIS 1 09/1993 41148137161 ENDED
01 Wheelhousing, front right BASIS 1 09/1993 41148137162 ENDED
02 Front left wheelhouse BASIS 1 41148137159 ENDED
02 Wheelhousing, front right BASIS 1 41148137160
03 Section of left front wheel housing BASIS 1 41001946059
03 Section of right front wheel housing BASIS 1 41001946060
04 Complete left engine support BASIS 1 41118137163 ENDED
04 Complete right engine support BASIS 1 41118137164 ENDED
04 Front left engine support 1 41118137165 ENDED
04 Front right engine support 1 41118137166 ENDED
05 Front left engine support 1 41118137165 ENDED
05 Front right engine support 1 41118137166 ENDED
06 Carrier 2 41111958035 $123.88
07 Section of left engine support 1 41111978187 $137.56
07 Section of right engine support 1 41111978188 $137.56
08 Wheel housing strut, front left 1 41118137271 ENDED
08 Wheel housing strut, front right 1 41118137272 ENDED
09 Connection plate left 1 41111958045 $25.52
09 Connection plate right 1 41111958046 $25.52
10 Covering panel for engine beam left 1 41111964253 $21.00
10 Covering panel for engine beam right 1 41111964254 $21.00
11 Air intake tube left 1 41111964251 $7.58
11 Air intake tube right 1 41111964252 $7.58
12 Towing hinge 2 41111978150 $15.38
13 Blind plug D=22,8MM 6 51711963579 $0.79
14 Section of left reinforcement 1 41118102461 $101.81
14 Section of right reinforcement 1 41118102462 $101.81
18 Earth pin M8X12 X 07/1996 41118176577 $1.68 ENDED
18 Earth pin M8X12 X 07147182215
18 Earth pin M6X12 X 07/1996 41118367249 $1.85 ENDED
18 Earth pin M6X12 X 41248185432
For vehicles with
Air conditioning

=No
19 Cover lid D=105MM 1 51711946184 $1.77 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
