5' E34 525ix Closing system, door, rear

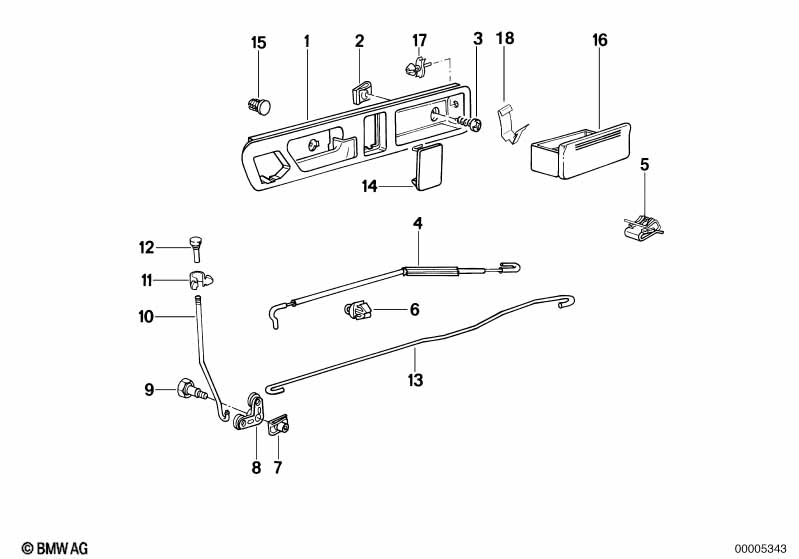

Closing system, door, rear
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Door handle, inside left 1 51228137387 $30.48
01 Door handle inner right 1 51228137388 $30.48
02 Body nut ST4,8-1 4 01/1992 07129925735 $0.18 ENDED
02 Set body nut 25 ST4,8-1 4 07/1996 07509063124 ENDED
02 Body nut ST4,8-1-ZNS 4 07/1996 07129901647 $0.11 ENDED
02 Body nut ST 4,8 4 07/1996 07129904222 $0.11 ENDED
02 Plug-in nut M5 4 46637651465 $1.29
03 Fillister head self-tapping screw ST4,8X13-Z1 4 07119907956 $0.18
04 Bowden cable left 1 09/1991 51228117615 $5.47 ENDED
04 Bowden cable right 1 09/1991 51228117616 $5.68
04 Bowden cable left 1 09/1991 51228148621 $4.97
04 Bowden cable right 1 09/1991 51228148622 $4.97
05 Clamp 2 51211928264 $0.69
06 Clamp 2 51228202809 $0.50
07 C-clip nut M6-ZNS3 2 51127070202 $1.00
08 Lever left 1 09/1991 51211906343 $3.47
08 Lever right 1 09/1991 51211906344 $3.47
08 Lever 2 09/1991 51228132380 $1.73
09 Collar screw M6 2 51221818973 $0.69
10 Lever left 1 51221944195 $1.77
10 Lever right 1 51221944196 $1.77
For vehicles with
Roller sun shield

=Yes
10 Lever left 1 51228102965 $3.50 ENDED
10 Lever right 1 51228102966 $3.50
11 Tubing support D=10,8MM 2 64111364073 $0.57
12 Lock button SCHWARZ 2 51211852140 $1.82
13 Lever left 1 09/1991 51221944191 $1.82 ENDED
13 Lever right 1 09/1991 51221944192 $1.82
13 Lever 2 09/1991 51228148823 $1.82
14 Cover 2 51221944524 $0.88
15 Cap SCHWARZ 2 51211944385 $0.68
16 Ashtray 2 01/1991 51168137396 $37.92
18 Spring 2 51161944215 $1.98
Notes
  • ENDED = the part has been discontinued (no longer available).
