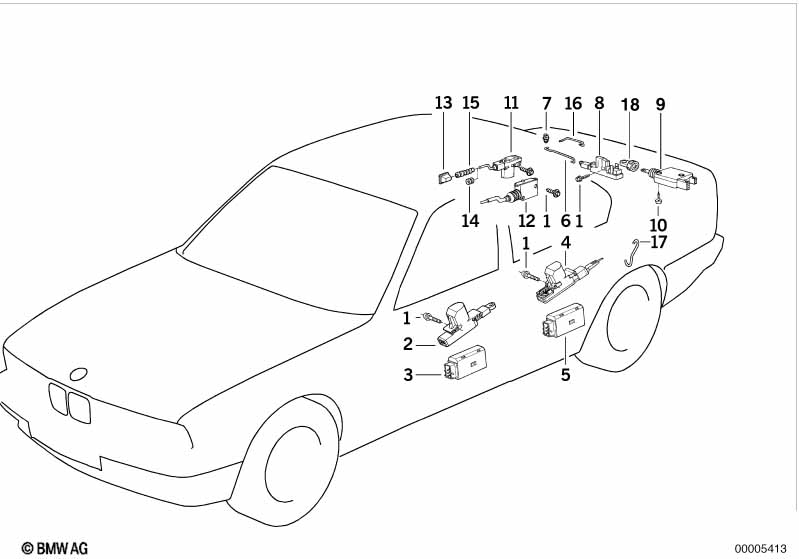

5' E34 525ix Central locking system

Central locking system
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Important notice! Before ordering keys,
central locking systems, control units
(EWS immobilizer/CAS), etc., it is
vital to ensure that the customer
and/or vehicle owner present proof of
authorization in the form of original
vehicle documents and an official photo
ID! A power of attorney from the
vehicle owner is also required for
authorised third parties. Copies of the
specified credentials (proof of
authorisation) must be kept in the
vehicle records. Please inform BMW
Service immediately if a vehicle key is
lost so it can be deactivated in order
to avoid taking the risk of losing the
insurance cover due to gross negligence
in the event of a theft.
01 Hex bolt with washer L=16MM X 51261375979 $0.41
02 Actuator f front door 2 09/1991 51268356065 $156.30
03 Actuator f front door 2 09/1991 67111387726 $101.80 ENDED
03 Actuator 2 09/1991 67118353012
04 Actuator f rear door 2 09/1991 51269060622 $129.00
05 Actuator 2 09/1991 67111393999 $101.80 ENDED
05 Actuator 2 09/1991 67118353011
06 Connection rod 1 51241946130 $1.89
07 Circlip 1 51221817032 $0.31
08 Actuator f trunk lid STECKER 5 POLIG 1 09/1991 51268350181 $126.97
09 Actuator 1 09/1991 67118353000 $86.30 ENDED
10 Torx-bolt for plastic material ISA TS5X16 2 09/1991 07149113701 $0.38
11 Actuator 1 09/1991 51268350182 $138.04
12 Actuator 1 09/1991 67116987626 $57.47
13 Cap 1 51171928699 $0.62
14 Sleeve 1 51258116266 $1.10
15 Rubber boot 1 51251957173 $5.13
18 Connection piece VDO 1 09/1991 67118361868 $0.73 SI 511093743
18 Connection piece KIEKERT 1 09/1991 67118361869 $0.38
Notes
  • ENDED = the part has been discontinued (no longer available).
  • SI = Service Information
