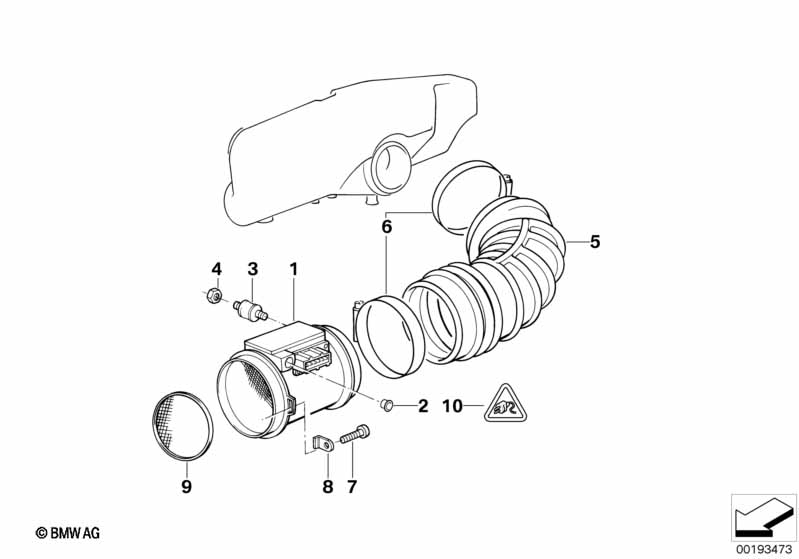

5' E34 M5 3.6 Mass air flow sensor

Mass air flow sensor
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Mass air flow sensor 1 13621311950 $941.19
RECTANGULAR PLUG
01 Air volume sensor 1 13621466353 $1040.00
RECTANGULAR PLUG
02 Cap SERVICE 1 13621274107 ENDED
03 Rubber Mounting 2 13711720029 $8.64
04 Hex nut with plate M6 2 12131718569 $0.50 ENDED
04 Self-locking hex nut M6 2 64509123157 $0.70
05 Rubber boot 1 11611312062 $54.67
06 Hose clamp L=90-110 2 18111763219 $5.18
07 Hex bolt with washer M6X12-Z3-1 2 07119915033 $1.07
08 Bracket 2 13711312981 $1.80
09 Protecting grille LMM 2 13621316910 $11.80
only in conjunction with
-- Retainer 2 13621316909 $9.20 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
