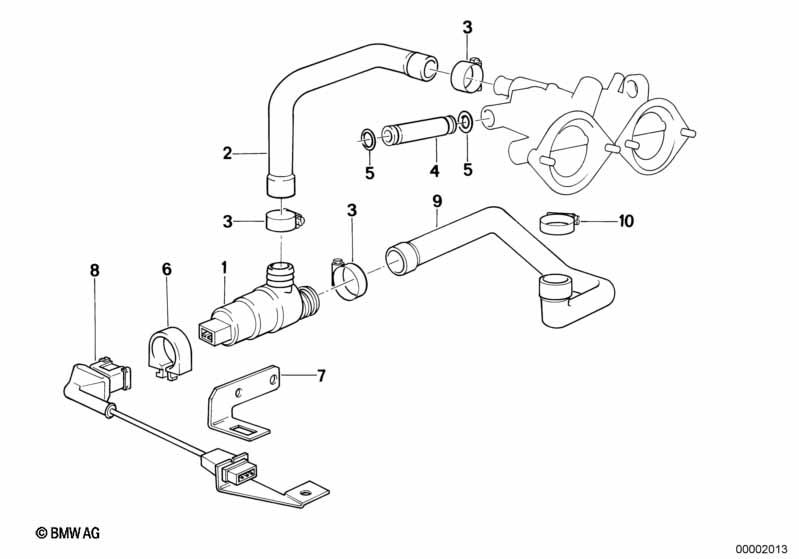

5' E34 M5 3.6 Idle regulating valve

Idle regulating valve
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 L-shape idle regulating valve 1 13411286065 $213.68 ENDED, SI 130184338
02 Hose 1 13411312666 $18.13
03 Hose clamp L18-24 1 07129952109 $1.07
03 Hose clamp L16-30 2 64218367179 $1.07
04 Connection pipe 1 13541307349 $12.75 ENDED
05 O-ring 2 13541307380 $2.48
06 Rubber Mounting 1 13411705564 $2.40 +core
07 Bracket idle adjuster 1 13411310697 $3.65
08 Adapter lead 1 12511311604 $39.80 ENDED
09 Hose 1 13411312707 $85.47
10 Hose clamp L28-33 1 07129952113 $0.96
Notes
  • ENDED = the part has been discontinued (no longer available).
  • SI = Service Information
  • +core = plus core charge (possibility of a return of the old part)
