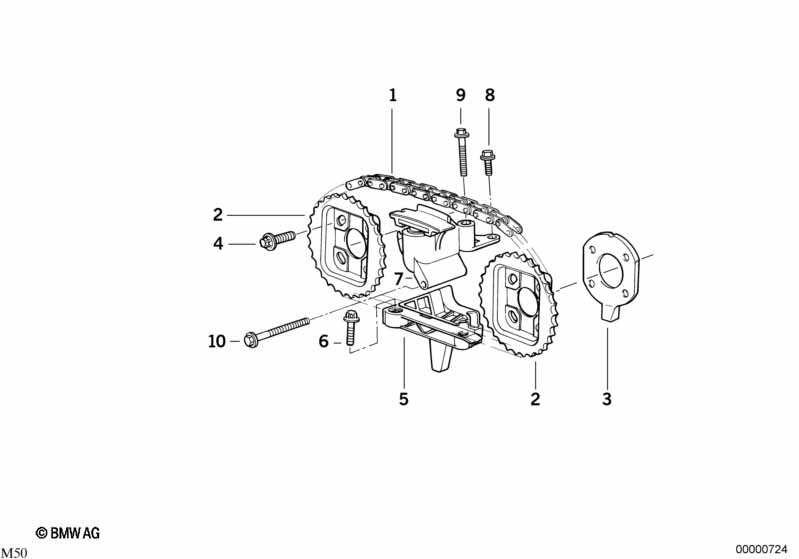

5' E34 520i timing gear timing chain top

timing gear timing chain top
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Timing chain 1 09/1992 11311432177 $43.59
02 Sprocket 2 09/1992 11311726387 $33.19
03 Impulse sending wheel 1 09/1992 11311726386 $27.42
For vehicles with
National version Germany
ONLY APPLIES TO SIEMENS-DME

L801A=Yes
03 Impulse sending wheel 1 09/1992 11311730506
04 Screw M7X18 8 09/1992 11311726412 $5.13
05 Guide rail 1 09/1992 11311722651 $21.22
06 Torx bolt M6X20 2 09/1992 11311736326 $0.57
07 Chain tensioner 1 09/1992 11311738700 $72.93
08 Hex bolt with washer M6X16-Z1-ZNS 1 09/1992 07119900250 $0.24 ENDED
08 Hex bolt with washer M6X16-U1-8.8 1 09/1992 07119904524 $0.25
09 Hex bolt with washer M6X40-Z1-ZNS 2 09/1992 07119901799 $3.39 ENDED
09 Hex bolt with washer M6X40 ZNNIV SI 2 09/1992 07119904525 $1.09
10 Hex bolt with washer M6X55-Z1-ZNS 1 09/1992 07119901603 $0.82 ENDED
10 Hex bolt with washer M6X55-Z1 1 09/1992 07119904526 $0.56
Notes
  • ENDED = the part has been discontinued (no longer available).
