5' E34 520i Drive shaft,univ.joint/center mounting

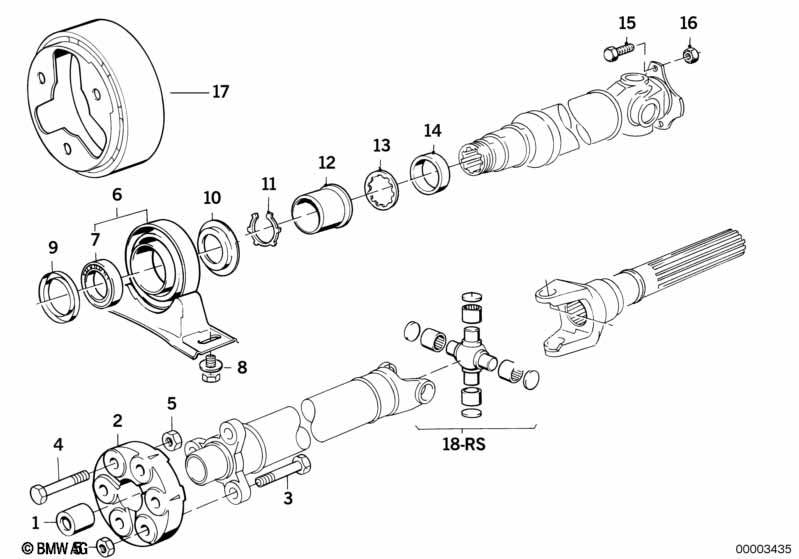

Drive shaft,univ.joint/center mounting
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Centering sleeve 1 26117526611 $11.32
02 Universal joint LK=78MM/D=110MM 1 26111225624 $92.56
LK = bolt hole
03 Hex bolt M10X50/8.8 3 26111225054 $2.73
03 Hex bolt M10X50-10.9 3 26117526705 $1.77
04 Hex bolt M10X50/10.9 3 26111209498 $2.73
05 Self-locking hex nut M10 6 07129964672 $0.36
06 Center Mount 55X13X30 1 26121226723 $83.95
07 Grooved ball bearing D=55/D=30 1 26121225071 $26.16
08 Hex bolt with washer M8X16 2 07119905528 $0.62
09 Dustcover plate 1 26111226553 $2.27
10 Dustcover plate 1 26111226552 $2.27
11 Lock Ring 1 26123648156 $0.98
12 Threaded ring with clamp-ring 1 26117514037 $12.52
13 Tooth washer 1 26111209285 $2.73
14 Threaded ring with clamp-ring 1 26117514037 $12.52
15 Knurled bolt M10X25 4 26111206718 $2.18
16 Self-locking hex nut M10 4 09/1992 07129964672 $0.36
16 Hex nut with ribs M10/SW16 4 26111227843 $0.75
