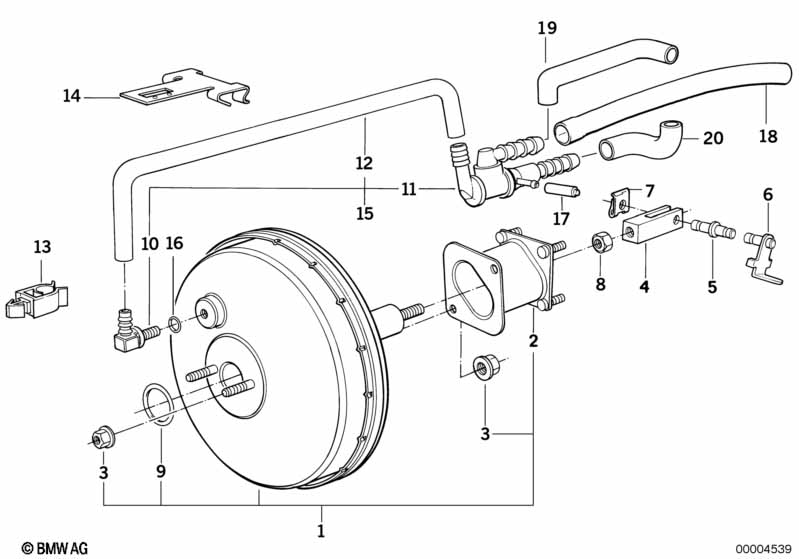

5' E34 520i Power brake unit depression

Power brake unit depression
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Lucas Girling
01 Brake servo unit GIRLING 1 34331160625 $817.67
03 Self-locking hex nut M8 6 07129922716 $0.36
04 Forkhead L=50MM 1 34331156826 $3.50
06 Pin 1 34331161802 $4.55
07 Clamp 1 34331120538 $0.60
08 Hex nut M10 1 07119922851 $0.20 ENDED
09 Brake master cylinder o-ring 1 34311159007 $3.15
10 T-Connector 1 34331158930 $4.53
10 Connector straight 1 34331158931 $3.92
11 non-return valve 1 34331158106 $74.05
12 Vacuum hose 12X19 X 34331115926 $28.71 +core
16 Gasket ring 1 34331158929 $3.15
18 Vacuum hose 12X19 X 34331115926 $28.71 +core
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
