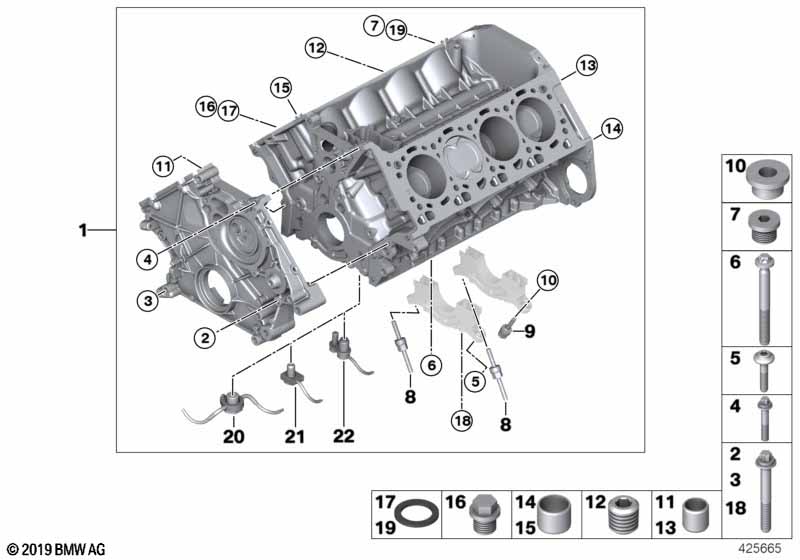

5' F11 LCI 550i Engine block
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Engine block with piston | 1 | 11112351175 | ||||||
| Required for repair | |||||||||
| -- | Primer Loctite 171000 | 4ML | 1 | 83197515683 | $11.90 | ||||
| 02 | ASA-Bolt | M8X65-U1 | 2 | 07129905712 | $1.16 | ||||
| 03 | ASA-Bolt | M8X85 | 3 | 07129905830 | $1.96 | ||||
| 04 | ASA-Bolt | M8X45-U1 | 1 | 07129905520 | $1.25 | ||||
| 05 | Collar screw | M8X37 | 7 | 11417508149 | $0.88 | ||||
| 06 | Collar screw | M11X99 | 10 | 11117628302 | |||||
| 08 | Spacer | 2 | 11117568242 | $11.30 | |||||
| 09 | Screw | 1 | 11117568243 | $5.13 | |||||
| 10 | Spacer bush | 10 | 11111710132 | $5.27 | |||||
| 11 | Dowel | D=10,5MM | 2 | 11121726238 | $1.62 | ||||
| 12 | Screw plug | M18X1.5-ZNNIV | 2 | 11117545231 | $3.78 | ||||
| 13 | Dowel | D=8,3MM | 2 | 11121715657 | $1.25 | ||||
| 14 | Dowel | D=14,5MM | 2 | 11117524470 | $1.65 | ||||
| 15 | Dowel | D=14,5MM | 4 | 11111743118 | $1.65 | ||||
| 18 | Collar screw | M8X70 | 10 | 11117557325 | |||||
| Position in image can only be determined based on installed part. Then please open the appropriate image without VIN entry. |
|||||||||
| 22 | Oil Spraying Nozzle | 8 | 11427847109 | ||||||
