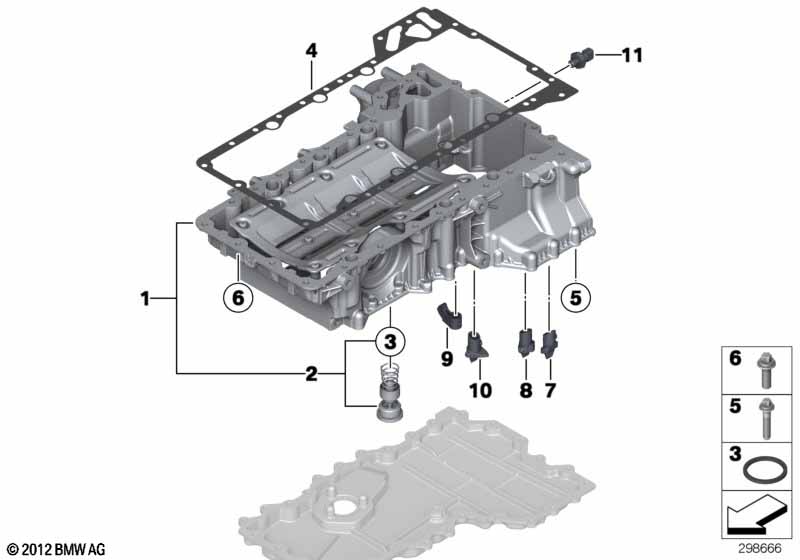

5' F11 LCI 550i Oil pan upper part, oil level indicator

Sponsored links

No.	Description	Supp.	Qty	From	Up To	Part Number	Price		Notes
01	Oil pan upper part		1			11137621070
	only in conjunction with
--	Torx screw, self-locking	M8X25-U1-8.8	19			07129909333
	Required for repair
--	Torx screw, self-locking	M8X45-U1	22			07129909348
	Required for repair
--	Loctite 5970 liquid sealant	50ML	1			83190404517	$23.40
02	Control valve		1			11427585703			+core
03	Gasket ring	A33X39-CU	1			07119963473
04	Gasket Steel		1			11137566644	$28.71
05	ASA-Bolt	M8X45-U1	5		12/2015	07129907068			ENDED
05	Torx screw, self-locking	M8X45-U1	5			07129909348
06	ASA-Bolt	M8X25-U1-8.8	22		09/2015	07129906905	$0.56		ENDED
06	Torx screw, self-locking	M8X25-U1-8.8	22			07129909333
07	Cap		1			11137580712	$4.70
08	Cap		1			11137580713	$4.70
09	Cap		1			11137580714	$4.70
10	Cap		1			11137580715	$4.70
11	Oil pressure switch	M12X1,5	1			12618611273

Notes

• +core = plus core charge (possibility of a return of the old part)
• ENDED = the part has been discontinued (no longer available).
