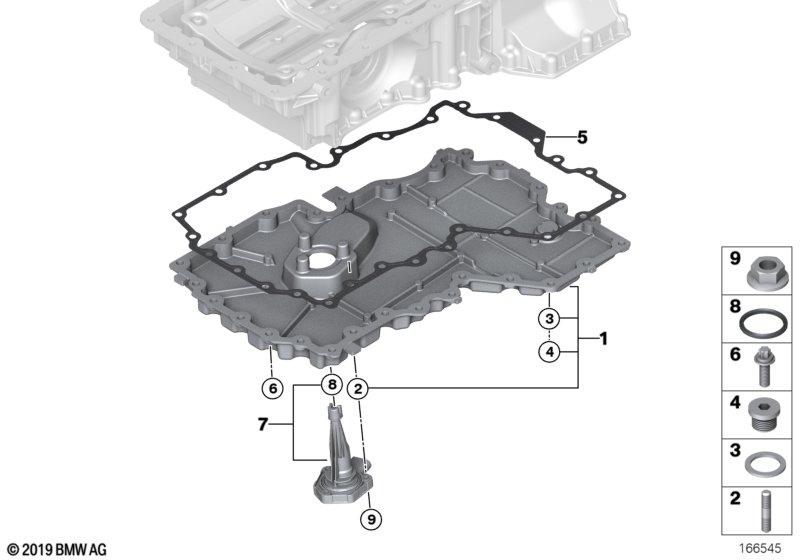

5' F11 LCI 550i Oil pan bottom part, oil level indicator

Sponsored links

No.	Description	Supp.	Qty	From	Up To	Part Number	Price		Notes
01	Oil Pan		1			11137570691	$222.76		+core
	only in conjunction with
--	Torx screw, self-locking	M8X25-U1-8.8	21			07129909333
	Required for repair
--	Loctite 5970 liquid sealant	50ML	1			83190404517	$23.40
02	Stud bolt	M6X30-ZNNIV SI	3			07129904544	$1.42
03	Gasket ring	A18X22-CU	1			07119963308	$0.25
04	Screw plug	M18X1,5-ZNNIV	1			07119905428	$11.47
05	Gasket Steel		1			11137570705
	Required for repair
--	ASA-Bolt	M8X25-U1-8.8	21			07129906905	$0.56		ENDED
06	ASA-Bolt	M8X25-U1-8.8	21		09/2015	07129906905	$0.56		ENDED
06	Torx screw, self-locking	M8X25-U1-8.8	21			07129909333
07	Oil levelling sensor		1			12618608780
08	Gasket		1			12617604790
09	Hex nut	M6-8-ZNNIV SI	3			07119905544	$0.64

Notes

• +core = plus core charge (possibility of a return of the old part)
• ENDED = the part has been discontinued (no longer available).
