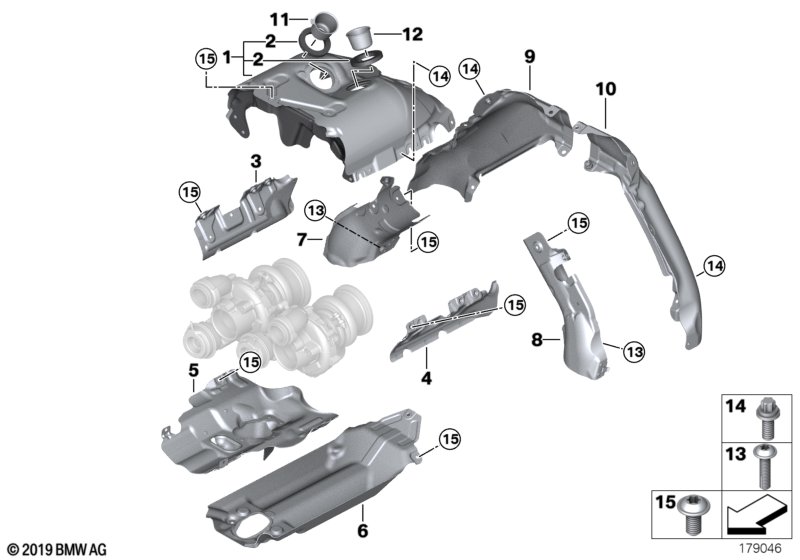

5' F11 LCI 550i Turbocharger heat shield
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Heat shield, upper | 1 | 11657615493 | ||||||
| 02 | Wire clamp | 2 | 11657590599 | ||||||
| 03 | Heat protection right | ZYL. 1-4 | 1 | 11657603060 | |||||
| 04 | Heat protection left | ZYL. 5-8 | 1 | 11657603061 | |||||
| 05 | Heat protection | 1 | 11657603062 | ||||||
| 06 | Heat shield, lower | 1 | 11657577001 | $78.05 | |||||
| 07 | Heat protection | ZYL. 1-4 | 1 | 03/2015 | 11657577002 | $35.57 | ENDED | ||
| 07 | Heat protection | ZYL. 1-4 | 1 | 03/2015 | 11658652463 | ||||
| only in conjunction with | |||||||||
| -- | Heat shield, rear | ZYL. 1-4 | 1 | 03/2015 | 11658652464 | ||||
| 07 | Heat protection | ZYL. 1-4 | 1 | 03/2015 | 11658652463 | ||||
| 08 | Heat protection | ZYL. 5-8 | 1 | 03/2015 | 11657605670 | ENDED | |||
| 08 | Heat protection | ZYL. 5-8 | 1 | 03/2015 | 11658652465 | ||||
| only in conjunction with | |||||||||
| -- | Heat shield, rear | ZYL. 5-8 | 1 | 03/2015 | 11658652466 | ||||
| 08 | Heat protection | ZYL. 5-8 | 1 | 03/2015 | 11658652465 | ||||
| 09 | Heat shield, rear | ZYL. 1-4 | 1 | 03/2015 | 11657576999 | $35.57 | ENDED | ||
| 09 | Heat shield, rear | ZYL. 1-4 | 1 | 03/2015 | 11658652464 | ||||
| only in conjunction with | |||||||||
| -- | Heat protection | ZYL. 1-4 | 1 | 03/2015 | 11658652463 | ||||
| 09 | Heat shield, rear | ZYL. 1-4 | 1 | 03/2015 | 11658652464 | ||||
| 10 | Heat shield, rear | ZYL. 5-8 | 1 | 03/2015 | 11657577000 | $35.57 | ENDED | ||
| 10 | Heat shield, rear | ZYL. 5-8 | 1 | 03/2015 | 11657591220 | ||||
| 10 | Heat shield, rear | ZYL. 5-8 | 1 | 03/2015 | 11658652466 | ||||
| only in conjunction with | |||||||||
| -- | Heat protection | ZYL. 5-8 | 1 | 03/2015 | 11658652465 | ||||
| 10 | Heat shield, rear | ZYL. 5-8 | 1 | 03/2015 | 11658652466 | ||||
| 11 | Sleeve | ZYL. 1-4 | 1 | 11657585806 | $7.89 | ||||
| 12 | Sleeve | ZYL. 5-8 | 1 | 11657585807 | $7.89 | ||||
| 13 | Fillister head screw | M 6X22 | 2 | 46617673124 | $3.04 | ||||
| 14 | ASA-Bolt | M6X16 ZNNIV SI | 13 | 07/2014 | 07129905905 | ||||
| 14 | ASA-Bolt | BM6X16-ZNNIV SI | 13 | 07119907573 | |||||
| 15 | Fillister head screw | M6X12-A2-80 | 19 | 06327651203 | $0.82 | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
