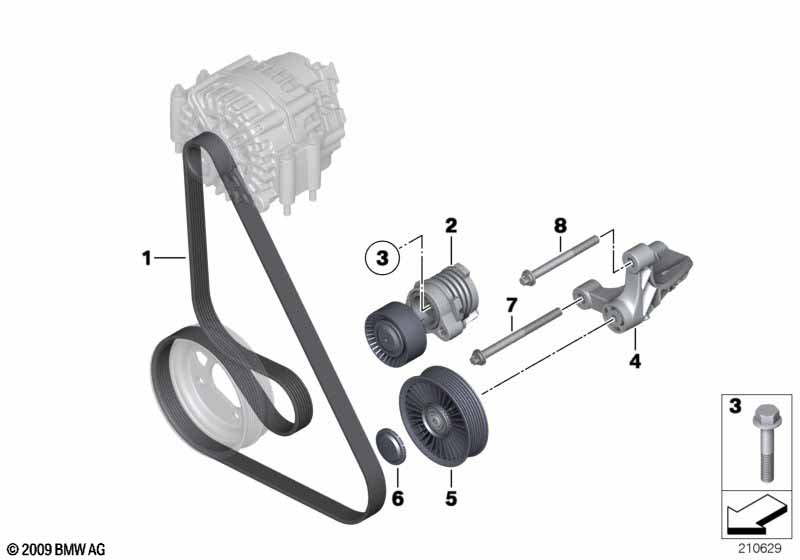

5' F11 LCI 550i Belt Drive Water Pump/Alternator
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Ribbed v-belt | PK7X1647 | 1 | 11287631824 | +core | ||||
| 02 | Belt tensioner | 1 | 11287549873 | $101.95 | |||||
| 03 | Hex bolt | M10X55-ZNNIV SI | 1 | 07119904529 | $1.33 | ||||
| For vehicles with Dynamic Drive |
S229A=No |
||||||||
| 04 | Bracket, deflection pulley | 1 | 03/2017 | 32427567337 | ENDED | ||||
| 04 | Bracket, deflection pulley | 1 | 11288699873 | ||||||
| 05 | Deflection pulley | 1 | 32427564649 | ||||||
| 06 | Protection cap | 1 | 11287795159 | $2.37 | |||||
| 07 | Screw | M10X130 | 1 | 07129906523 | $4.29 | ||||
| 08 | ASA bolt with washer | M10X110-Z1-8.8 | 1 | 07129905883 | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
