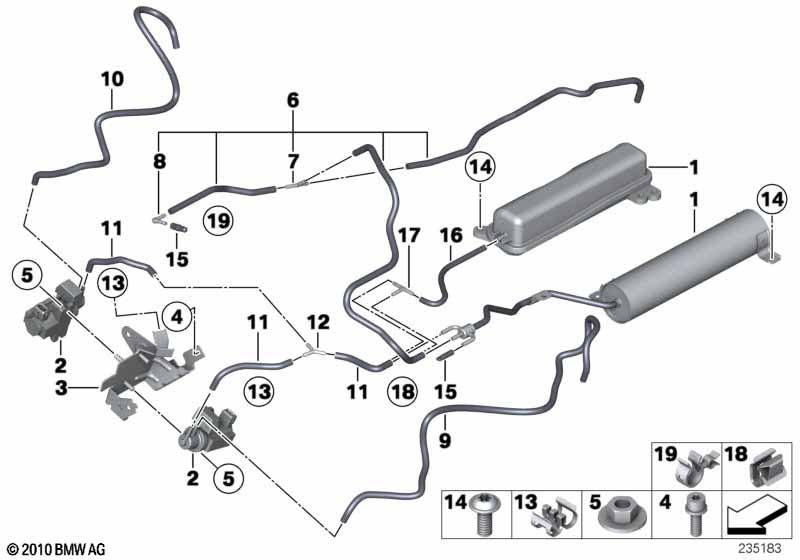

5' F11 LCI 550i Vacum control-engine-turbo charger
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Vacuum tank | 1 | 11657605374 | +core | |||||
| 02 | Pressure converter | 2 | 11747626351 | ||||||
| 03 | Holder | 1 | 11657572081 | $26.49 | |||||
| 04 | Isa screw with washer | M6X18-U1-8.8 | 2 | 07129904707 | $0.96 | ||||
| 05 | Hex nut | BM6-8-ZNNIV SI | 4 | 07/2010 | 07129905411 | $0.38 | |||
| 06 | Vacuum pipe | 1 | 11657612158 | ||||||
| 07 | T-Connector | 1 | 11721439973 | $1.07 | |||||
| 08 | Support | 1 | 22116759728 | $0.79 | |||||
| 09 | Vacuum pipe | 1 | 11657638730 | ||||||
| 10 | Vacuum pipe | 1 | 11657638729 | ||||||
| 11 | Vacuum hose black | 3,5X2,0 | X | 11657803732 | $16.43 | ||||
| 12 | Connection pipe Y | 1 | 13717577742 | $6.09 | |||||
| 13 | Hose clamp | 2 | 11657599309 | $1.13 | |||||
| 14 | Fillister head screw | M6X20 | 3 | 11117653180 | $1.40 | ||||
| 16 | Vacuum hose | L=390 | 1 | 11657620394 | +core | ||||
| 17 | T-Connector | 1 | 11721439973 | $1.07 | |||||
| 18 | Clip | 2 | 12521437136 | $0.63 | |||||
| 19 | Hose clamp | 1 | 13907506771 | $1.73 |
Notes
- +core = plus core charge (possibility of a return of the old part)
