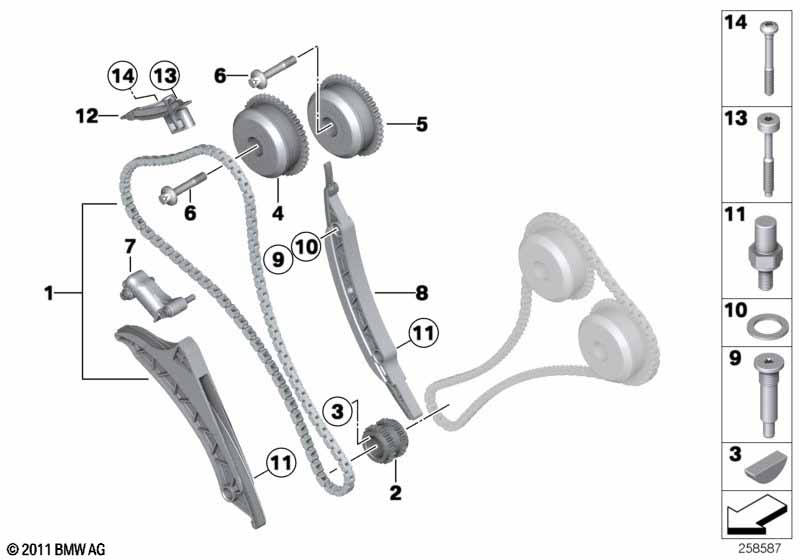

5' F11 LCI 550i Timing gear, timing chain, cyl. 1-4
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Timing chain with tensioner rail | ZYL. 1-4 | 1 | 06/2017 | 11317605195 | ||||
| 01 | Timing chain with tensioner rail | ZYL. 1-4 | 1 | 11318658027 | |||||
| 02 | Sprocket | 1 | 11217571037 | $87.97 | |||||
| 03 | Woodruff key | 4X5 | 1 | 07119951453 | $0.36 | ||||
| 04 | Adjustment unit, inlet camshaft | 1 | 11367600085 | ||||||
| 05 | Adjustment unit, outlet camshaft | 1 | 11367600086 | ||||||
| 06 | Central screw | M10X1X55 | 2 | 11367604773 | |||||
| 07 | Chain tensioner | 1 | 11317557741 | $63.43 | |||||
| 08 | Guide rail | ZYL. 1-4 | 1 | 11317594909 | |||||
| 09 | Bearing screw | 1 | 11317582925 | $6.05 | |||||
| 10 | Gasket ring | A14X21 | 1 | 11317550461 | $1.19 | ||||
| 11 | Bearing screw, self-locking | 2 | 11317584403 | $6.05 | |||||
| 12 | Slide rail | ZYL. 1-4 | 1 | 11317594912 | |||||
| 13 | Torx bolt | M6X48 | 1 | 11317605190 | |||||
| 14 | ISA screw | M6X67-8.8 | 1 | 11127603407 |
