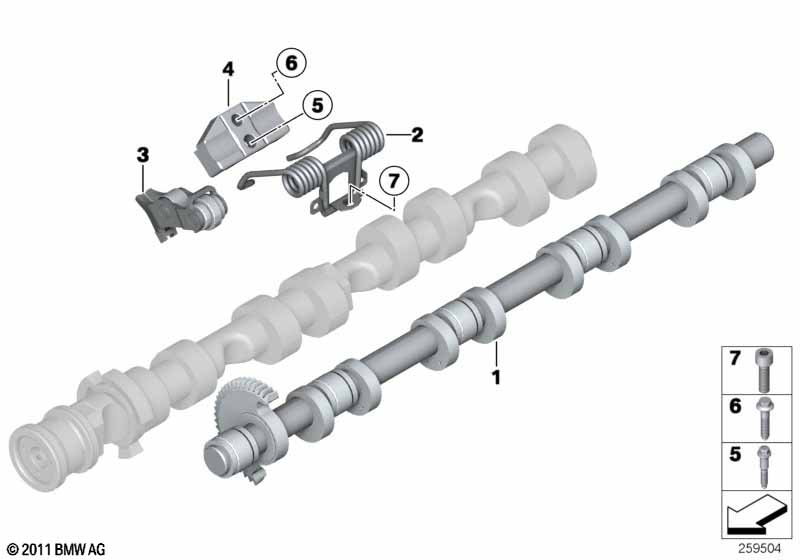

5' F11 LCI 550i Valve timing gear, eccentric shaft
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Eccentric shaft | ZYL.1-4 | 1 | 10/2015 | 11377604865 | ENDED | |||
| 01 | Eccentric shaft | ZYL. 1-4 | 1 | 11378600433 | |||||
| 01 | Eccentric shaft | ZYL.5-8 | 1 | 10/2015 | 11377604862 | ENDED | |||
| 01 | Eccentric shaft | ZYL. 5-8 | 1 | 11378600435 | |||||
| 02 | Retainer spring | 8 | 11377605019 | ||||||
| 03 | Intermediate lever | "1" | 16 | 11377539967 | |||||
| 03 | Intermediate lever | "2" | 16 | 11377539968 | $55.08 | ||||
| 03 | Intermediate lever | "3" | 16 | 11377539969 | $55.08 | ||||
| 03 | Intermediate lever | "4" | 16 | 11377539970 | |||||
| Part deleted, use sets of (8 units) idler levers from Class 4. |
|||||||||
| 03 | Intermediate lever | "5" | 16 | 11377539971 | ENDED | ||||
| 04 | Support | 8 | 11377614723 | ||||||
| 05 | Fit bolt | M6 | 8 | 11377550163 | $1.65 | ||||
| 06 | Collar screw | M6X25 | 8 | 11427527412 | $1.07 | ||||
| 07 | ISA screw | M6X20-8.8-ZNNIV | 8 | 07129901130 | $0.38 | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
