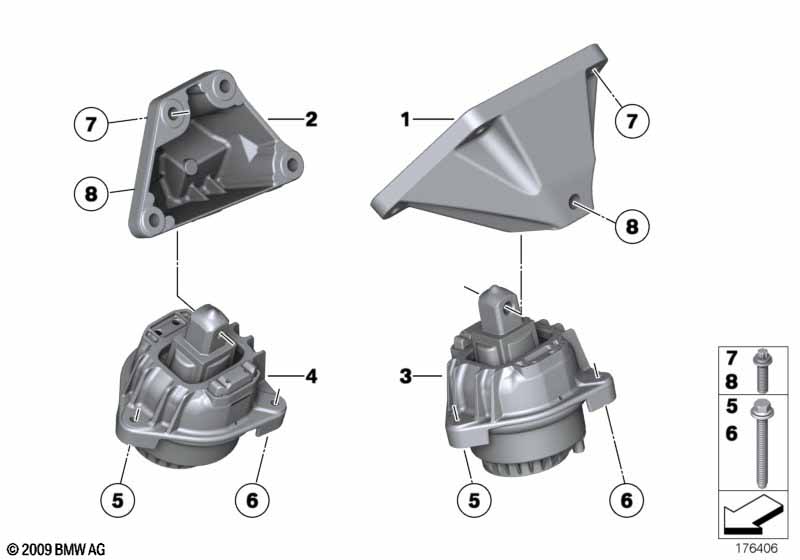

5' F11 LCI 550i Engine Suspension
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Engine supporting bracket, left | 1 | 22116775903 | $40.52 | +core | ||||
| 02 | Engine supporting bracket, right | 1 | 22116775904 | $40.52 | +core | ||||
| 03 | Engine mount, left | 1 | 22116851263 | +core | |||||
| 03 | Engine mount, left | 1 | 07/2014 | 22117935141 | |||||
| Install in pairs only | |||||||||
| 04 | Engine mount, right | 1 | 22116851264 | +core | |||||
| Required for repair | |||||||||
| -- | Hex bolt with washer | M8X130 ZNNIV SI | 1 | 07119905893 | |||||
| -- | Hex bolt with washer | M8X90 ZNNIV SI | 1 | 07119907017 | |||||
| 04 | Engine mount, right | 1 | 22117935142 | ||||||
| Install in pairs only | |||||||||
| 05 | Hex bolt with washer | M8X130 ZNNIV SI | 2 | 07119905893 | |||||
| 06 | Hex bolt with washer | M8X90 ZNNIV SI | 4 | 07119907017 | |||||
| 07 | Torx screw | M10X40-Z1-10.9 | 8 | 07129903976 | $1.05 | ||||
| 08 | Torx-bolt with washer | M12X1,5X40-ZNS3 | 2 | 12/2014 | 07129905834 | $4.18 | ENDED | ||
| 08 | Star-socket screw | BM12X1,5X40-U1- | 2 | 07119908507 | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
