5' F11 LCI 550i Gearbox suspension
Sponsored links
Sponsored links

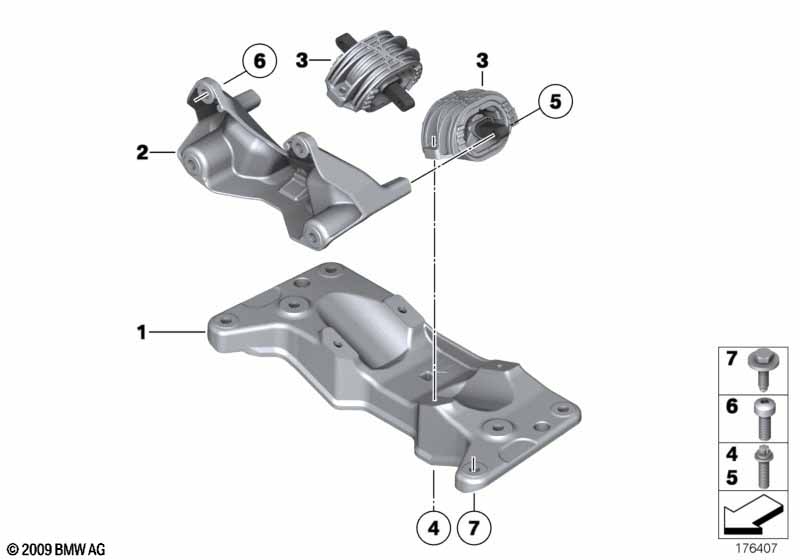

| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Transmission cross member | 1 | 09/2009 | 22326788568 | +core | ||||
| 02 | Transmission supporting bracket | 1 | 22326775909 | $84.02 | +core | ||||
| 03 | Transmission bearing set | 2 | 22316777388 | +core | |||||
| 04 | ASA-Bolt | M8X25-U1-8.8 | 4 | 07129905519 | $0.59 | ||||
| 05 | Star-socket screw | M8X35 | 4 | 07119907865 | |||||
| 06 | ISA screw | M10X32.5 | 4 | 22316774293 | $1.02 | ||||
| 07 | Hex bolt with washer | M8X22-8.8-ZNS3 | 6 | 22326760945 | $1.08 |
Notes
- +core = plus core charge (possibility of a return of the old part)
