5' F11 LCI 550i Gearbox mounting

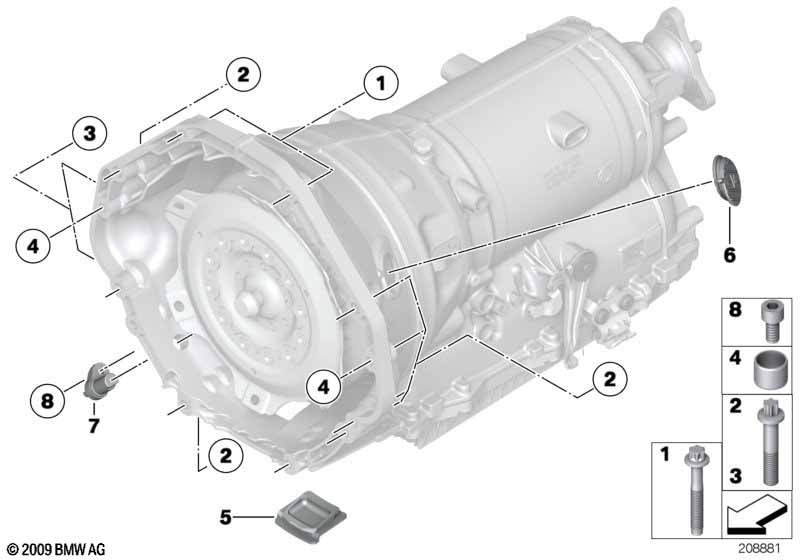

Gearbox mounting
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 ASA-Bolt M8X50-8.8-ZNS3 2 23001222887 $1.13
02 Torx bolt M10X55-8.8 ZNS3 8 23001222888 $1.13
03 Torx bolt M10X55-8.8 ZNS3 2 23001222888 $1.13
04 Dowel D=14,5MM 2 11117524470 $1.65
05 Cap 1 24001422960 $2.67
06 Cap 1 24147590118
07 Crankshaft sensor 1 09/2016 13628673788 ENDED
07 Crankshaft sensor 1 13627628741
08 Star-socket screw M6X16-ZNNIV SI 1 07119907463
Notes
  • ENDED = the part has been discontinued (no longer available).
