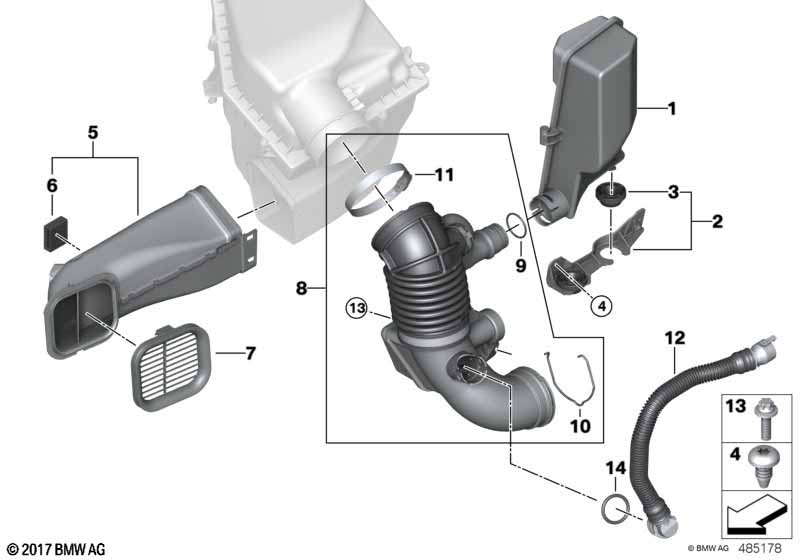

5' G30 520dX Air duct

Air duct
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Resonator 1 13718591849
02 Resonator holder 1 13718623292
03 Rubber Mounting 1 13718620471
04 Torx screw, self-threading M6X13-ZNNIVSI 1 31146786689
05 Intake duct 1 13718577168
06 Rubber element 1 13718651955
07 Intake grill 1 13717643298
08 Filtered air pipe 1 13718573422
09 O-ring D32 X 2.5 1 13718652852
10 Spring clip 1 17517802664 $2.88
11 Hose clamp D 88,8 - D 99,5 1 13718651957
12 Pipe 1 13717823517
For vehicles with
Cold-climate version

S842A=Yes
12 Pipe with heating element 1 13718573971
13 Torx bolt BM6X20-8.8-ZNS3 1 07119907243
14 O-ring 26X3 1 13718473143
For vehicles with
Cold-climate version

S842A=Yes
14 O-ring 24,99X3,53 1 13718473144
