7' F01 750i Engine Block Mounting Parts

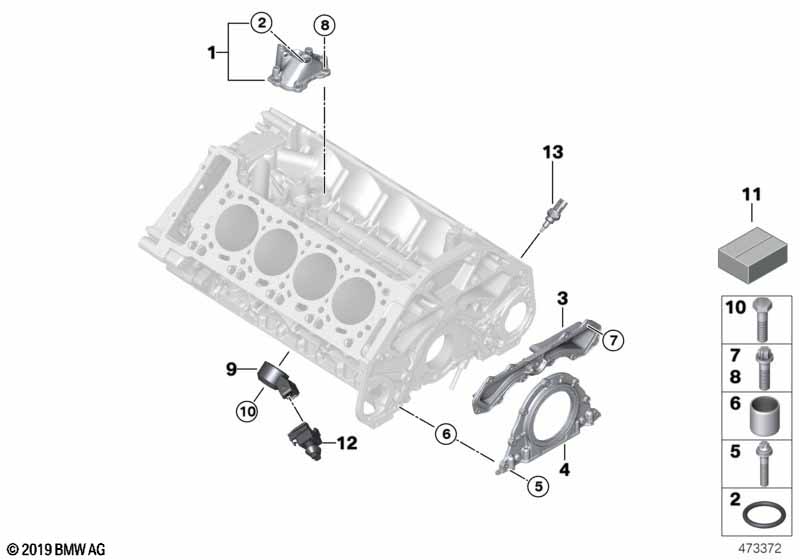

Engine Block Mounting Parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Oil return cover 1 07/2017 11657577016 $53.17
01 Oil return cover 1 11427935572
02 O-ring 13,8X2,64 2 11427578079 $1.17
03 End cover, rear 1 09/2017 11147567643 $54.10 ENDED
03 End cover, rear 1 11148483799
04 Cap with shaft seal 1 09/2017 11147583221 $86.79 ENDED
04 Cap with shaft seal 1 11148483798
05 ASA-Bolt M6X30-U1 7 07129907367
06 Dowel D=8,3MM 2 11121715657 $1.25
07 ASA-Bolt M6X18-U1 11 11147571166 $1.65
07 Hex bolt with washer M6X18-U1 11 07119905399 $0.36
08 ASA-Bolt M6X20-8.8-ZNS3 4 07/2014 07129905048 $2.78
08 Torx screw M6X20 4 07129907102
09 Ping Sensor 4 04/2011 13627577034 $53.52
09 Ping Sensor 4 04/2011 13627598861 +core
10 Hex bolt M8X30-8.8-ZNS3 4 07119902901 $0.25
11 Gasket Set Engine Block Asbesto Free 1 11112159389
13 Temperature sensor coolant / oil 1 13627580635
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
